MIXA300PF1200TSF

Overview

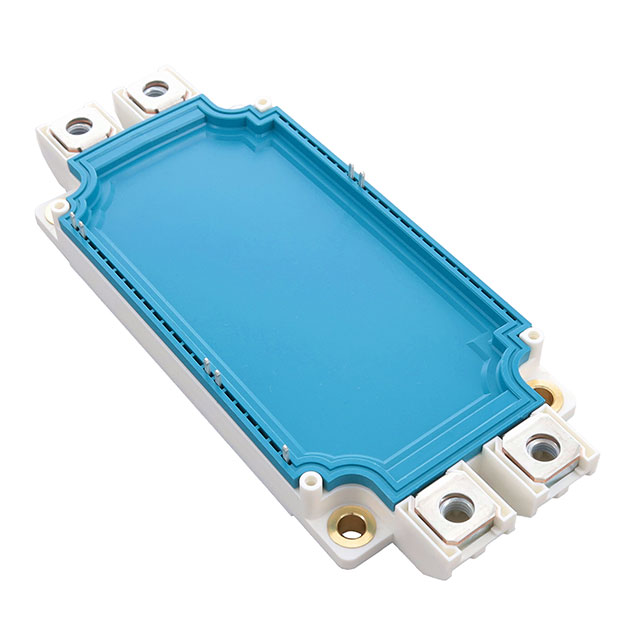

The MIXA300PF1200TSF is a silicon IGBT module manufactured by IXYS, utilizing XPT technology for optimized performance. It features a half-bridge configuration with two transistors housed in a SimBus F package designed for PCB installation. The device supports a maximum collector-emitter voltage of 1.2 kV and delivers a continuous collector current of 465 A at 25°C. Key electrical parameters include a collector-emitter saturation voltage of 1.8 V, a power dissipation rating of 1.5 kW, and a gate-emitter leakage current of 300 uA. The module operates within a temperature range of -40°C to +125°C and weighs approximately 350 g.

Feature Summary

• XPT technology integration for enhanced switching characteristics
• SimBus F packaging enabling direct PCB mounting
• Half-bridge topology with integrated diode structure

Applications

• Industrial motor drives
• Uninterruptible power supply systems
• High-frequency power conversion circuits

Procurement Notes

Verify the specific ordering suffix against official IXYS documentation to confirm pinout compatibility and thermal interface specifications. Ensure that the procurement channel provides traceability certificates matching the manufacturer's batch records. Cross-reference the component marking with the datasheet revision to validate authenticity before integration into production assemblies.

Selection Notes

Select this module when high current capacity and low saturation voltage are required in a compact PCB-mountable form factor. Evaluate the thermal resistance characteristics against the system's cooling capabilities to ensure operation remains within the specified junction temperature limits. Confirm that the drive circuitry can handle the gate charge requirements associated with the 465 A current rating.

Part Context

This component belongs to the IXYS MIXA series, which focuses on high-power density solutions for industrial applications. The MIXA300PF1200TSF represents a specific variant within the 1200 V class, distinguished by its 465 A current rating and specialized SimBus F footprint. It complements lower-current variants in the same family by offering higher throughput capability while maintaining similar mounting constraints.

Replacement Considerations

Direct replacements must match the 1200 V rating, 465 A current capacity, and SimBus F package dimensions. Verify that any substitute maintains identical pin assignment and thermal pad configuration to avoid PCB redesign. Consult IXYS documentation for updated equivalents within the MIXA or comparable product lines.
