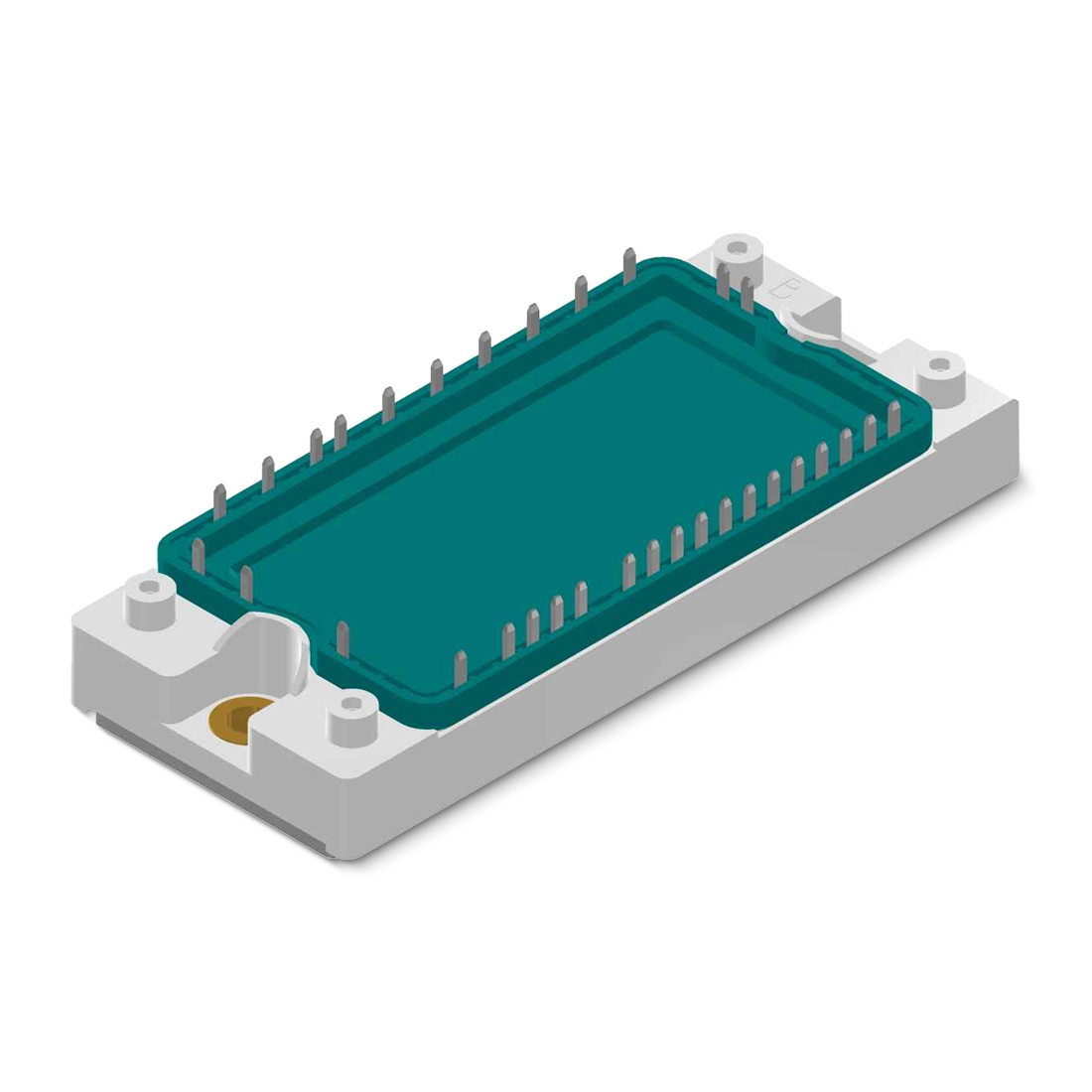

MIXA40W1200TED

$59.96

Description：IGBT MODULE 1200V 60A 195W E2
Series：-

SKU:a631cab916bc Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 60A 195W E2
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 35A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E2
Supplier Device Package：E2
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：60 A
Power - Max：195 W
Current - Collector Cutoff (Max)：2.1 mA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA40W1200TED

Overview

The MIXA40W1200TED is a silicon IGBT module manufactured by IXYS, belonging to the MIXA40W1200 series. It features a six-pack configuration and utilizes XPT technology. The device has a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 43 A at 25°C. The collector-emitter saturation voltage is 1.8 V, with a power dissipation of 150 W. It operates within a temperature range of -40°C to +125°C and uses an E2-Pack housing.

Feature Summary

Six-pack IGBT configuration for multi-phase applications
XPT technology for optimized switching performance
Screw mount installation style

Applications

Industrial motor drives
Uninterruptible power supplies
High-frequency power supplies

Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to confirm package type and terminal configuration. Ensure compatibility with existing thermal management solutions given the 150 W power dissipation rating. Confirm RoHS compliance status through official documentation before integration into regulated equipment designs.

Selection Notes

Select this component when a six-pack topology is required for 1.2 kV applications. Compare the 43 A continuous current rating against peak load requirements. Evaluate the E2-Pack dimensions against available board space. Consider the 1.8 V saturation voltage impact on conduction losses relative to alternative modules in the same voltage class.

Part Context

This module is part of the IXYS MIXA40W1200 series, which includes variants like MIXA30W1200TED and MIXA60W1200TED. These modules share similar packaging and technology but differ in current ratings. The series is designed for general purpose industrial inverter applications requiring reliable high-power switching capabilities.

Replacement Considerations

Direct substitutes include MIXA30W1200TED and MIXA60W1200TED from the same series. Verify pinout compatibility and thermal resistance values before substitution. Alternative manufacturers may offer comparable six-pack modules with similar voltage and current ratings.
