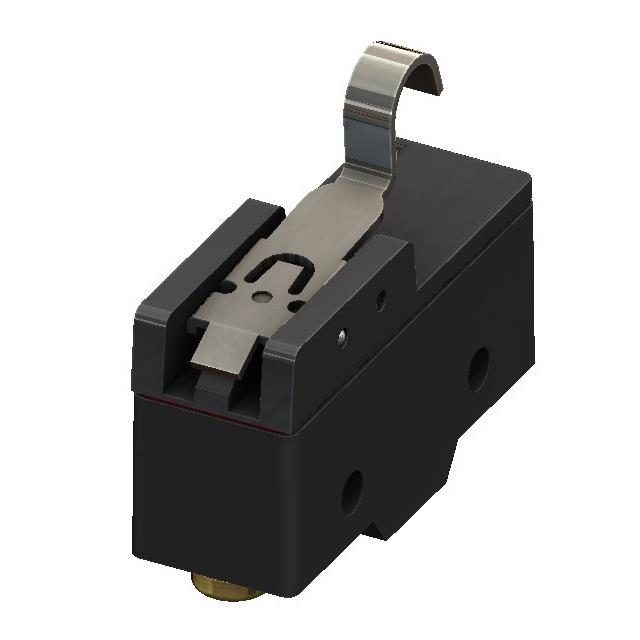

MJ2-1516 PH-20

MJ2-1516 PH-20 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 20A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJ2-1516 PH-20

• Description：SWITCH SNAP ACTION SPDT 20A 250V
• Series：MJ2
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：20A (AC), 500mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Simulated Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP40
• Features：Oil Resist Boot Seal
• Operating Force：140gf
• Release Force：20gf
• Operating Position：-
• Pretravel：0.083" (2.1mm)
• Differential Travel：0.020" (0.5mm)
• Overtravel：0.185" (4.7mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJ2-1516 PH-20
