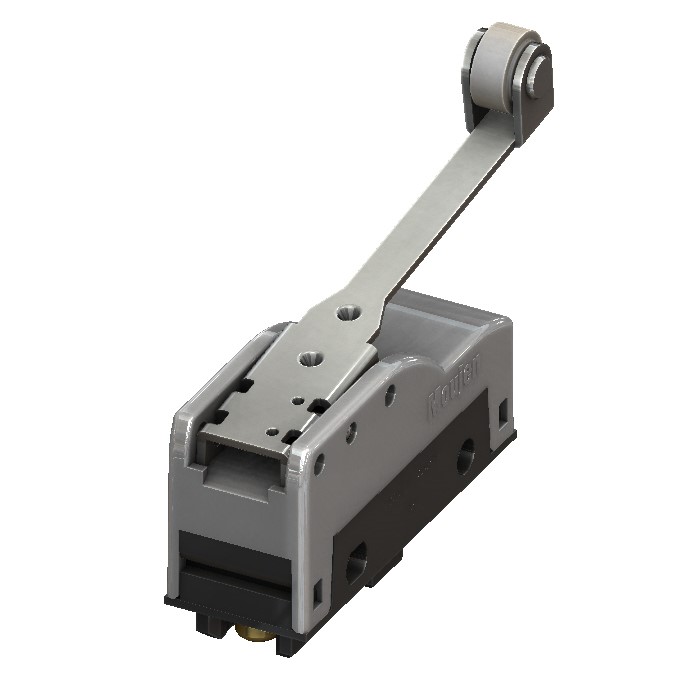

MJG--MJ3-512121--T3

MJG–MJ3-512121–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT Pos-Open 2-contact Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–MJ3-512121–T3

• Description：SPDT Pos-Open 2-contact Switch
• Series：MJ3
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 0.4A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：-
• Operating Force：76gf
• Release Force：58gf
• Operating Position：-
• Pretravel：0.303" (7.7mm)
• Differential Travel：0.035" (0.9mm)
• Overtravel：0.350" (8.9mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：250 V

Limit Switches datasheet and documents for MJG–MJ3-512121–T3
