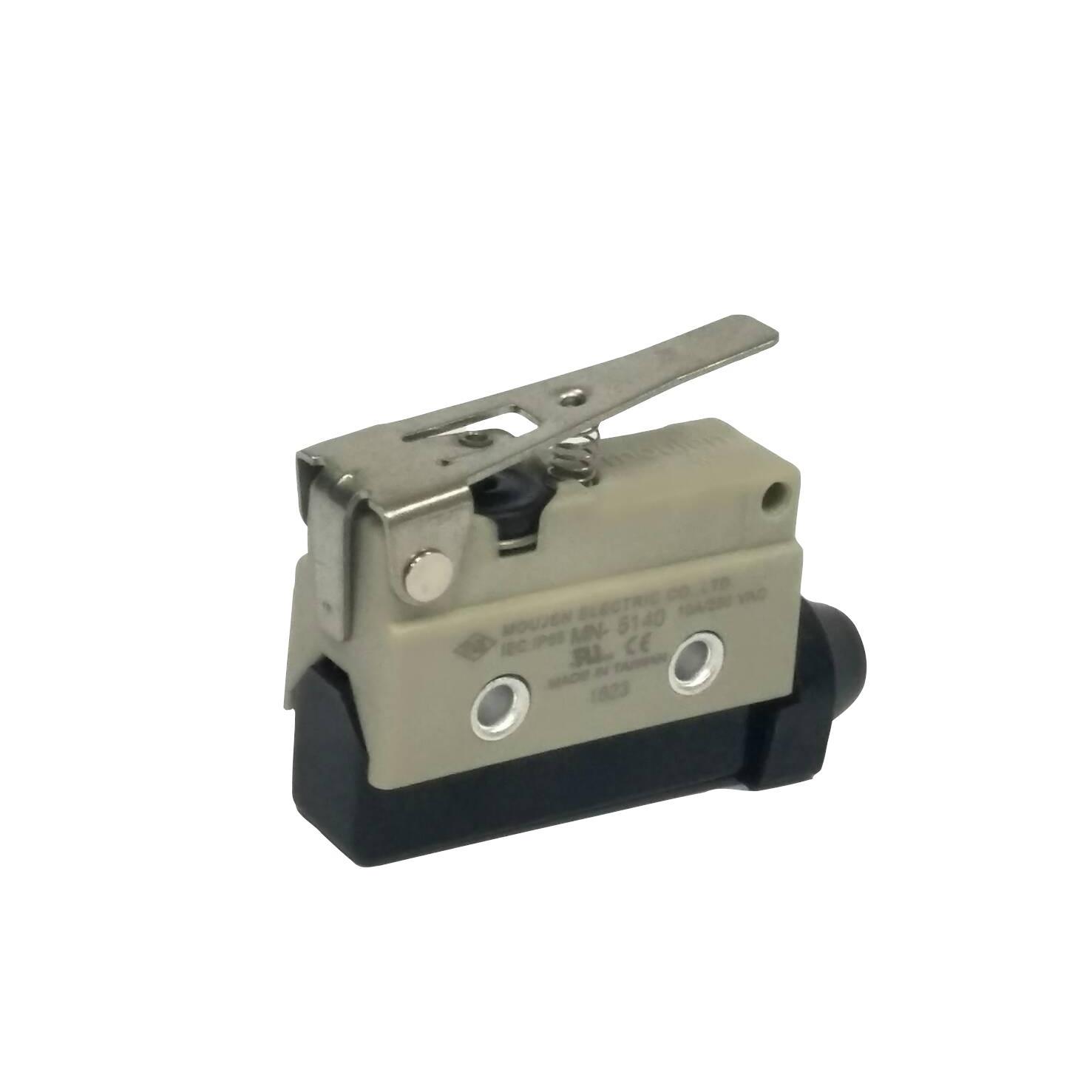

MJG--MN-5140--T3

MJG–MN-5140–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT Enclosed Basic Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–MN-5140–T3

• Description：SPDT Enclosed Basic Switch
• Series：MN
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 0.5A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：Actuator Seal Boot
• Operating Force：220gf
• Release Force：60gf
• Operating Position：-
• Pretravel：0.335" (8.5mm)
• Differential Travel：0.080" (2.0mm)
• Overtravel：0.098" (2.5mm)
• Operating Temperature：-10°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJG–MN-5140–T3
