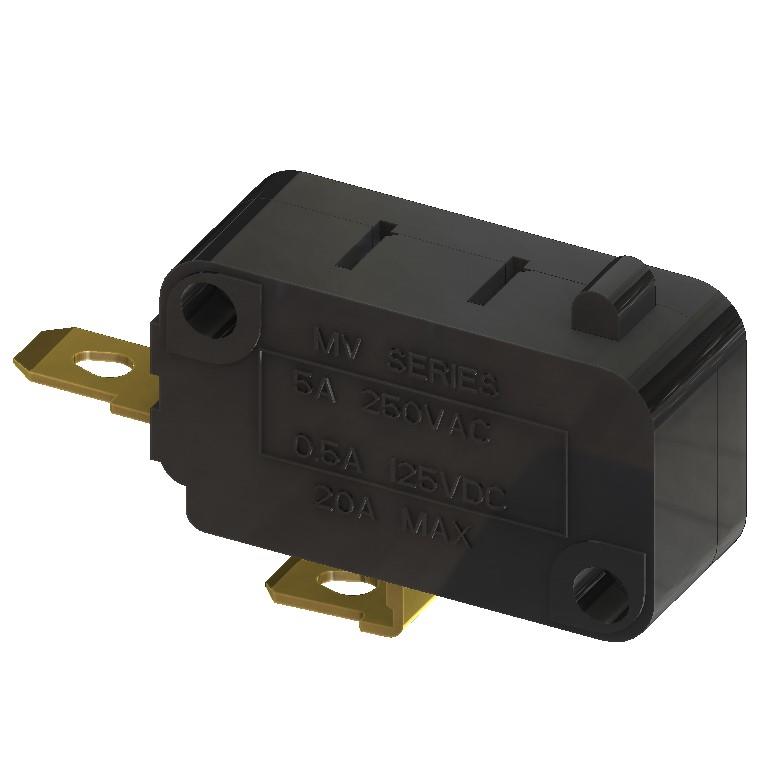

MJG--MV-3000A-NO--T3

MJG–MV-3000A-NO–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is 5A SPST-NO Mini Snap Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–MV-3000A-NO–T3

• Description：5A SPST-NO Mini Snap Switch
• Series：MV
• Mfr：Moujen
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 0.5A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：250gf
• Release Force：50gf
• Pretravel：0.047" (1.2mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.039" (1.0mm)
• Operating Temperature：-20°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJG–MV-3000A-NO–T3
