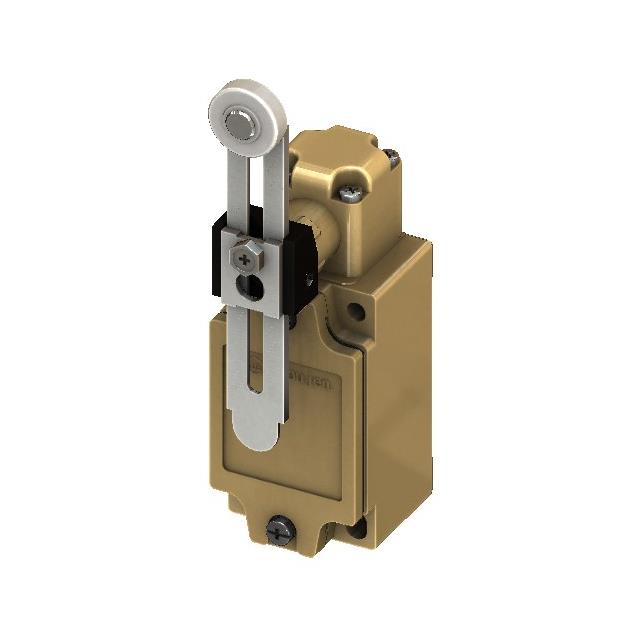

MJG--UL MJ-7108-PT--T3

MJG–UL MJ-7108-PT–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT-DB/DM Heavy Duty Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–UL MJ-7108-PT–T3

• Description：SPDT-DB/DM Heavy Duty Switch
• Series：MJ
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT (DB/DM)
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 0.4 (DC)
• Voltage Rating - AC：300 V
• Actuator Type：Side Rotary, Adjustable Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：PTFE Roller
• Operating Force：1400gf
• Release Force：227gf
• Operating Position：-
• Pretravel：15° ~ 20°
• Differential Travel：12°
• Overtravel：25°
• Operating Temperature：-10°C ~ 80°C
• Voltage Rating - DC：250 V
