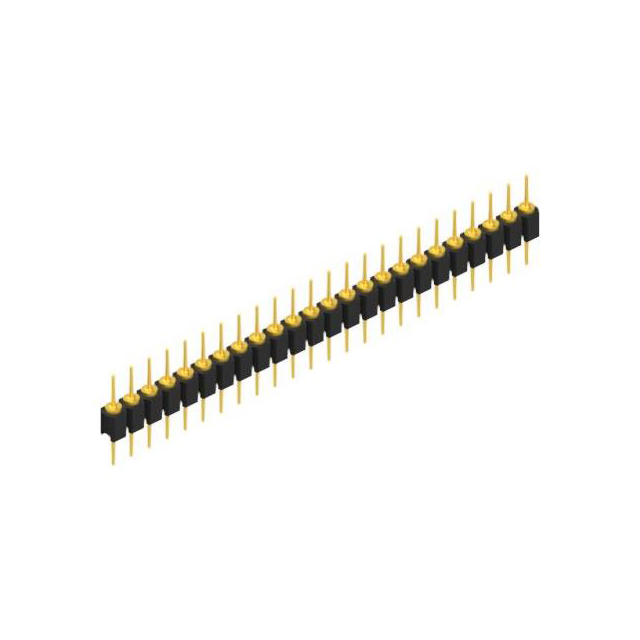

MK 05 24 G

Headers, Male Pins Overview

The MK 05 24 G is a male pin header manufactured by Fischer Elektronik. It features a through-hole mounting style with 24 positions arranged in a single row. The connector utilizes a 0.100-inch (2.54mm) pitch for standard spacing between contacts. The solder and plug pins have a diameter of 0.5 mm, designed to provide reliable electrical connections suitable for demanding industrial environments.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single row design accommodating 24 contact positions
• Standard 2.54mm pitch ensures compatibility with common mating connectors

Headers, Male Pins Applications

• Industrial electronic equipment requiring robust interconnects
• Board-to-board or wire-to-board signal transmission
• General-purpose circuit board assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure accuracy. Confirm that the required 24-position configuration matches the project specifications. Check for any applicable RoHS compliance requirements if necessary for the target market. Ensure the through-hole mounting method aligns with the manufacturing process capabilities.

Headers, Male Pins Selection Notes

Select this component when a 24-pin male header is required for through-hole applications. The 2.54mm pitch is standard for many industrial interfaces. Consider the 0.5mm pin diameter for mechanical stability. Evaluate the need for single-row versus multi-row configurations based on available board space and connection density requirements.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik MK 05 series of male headers. The series is characterized by solder and plug pins with a 0.5mm diameter. These connectors are engineered for reliability in industrial settings. The MK 05 line offers various position counts, with the 24-position variant providing a balanced solution for moderate-density connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the MK 05 family include other position variants such as MK 05 50 G. Verify that alternative part numbers maintain the same 2.54mm pitch and through-hole mounting characteristics to ensure mechanical and electrical interchangeability.
