Product introduction

MK 226 SMD 18 G SM is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is Turned precision contacts; stro. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MK 226 SMD 18 G SM

Description：Turned precision contacts; stro
Series：MK 226 SMD
Mfr：Fischer Elektronik
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：18
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.098" (2.50mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Zinc
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.5A
Voltage Rating：60VDC

Headers, Male Pins datasheet and documents for MK 226 SMD 18 G SM

MK 226 SMD 18 G SM

Headers, Male Pins Overview

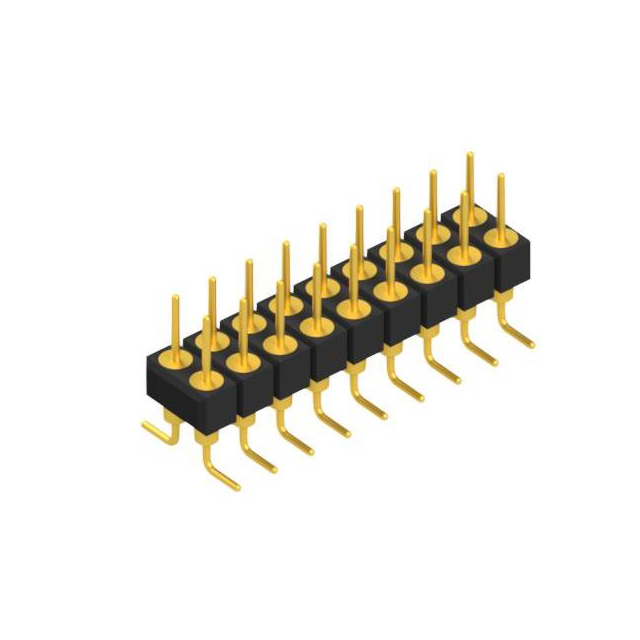

The MK 226 SMD 18 G SM is a surface mount pin header manufactured by Fischer Elektronik. It features an 18-position configuration with two rows of contacts. The connector utilizes a 2.54 mm (0.100 inch) pitch for standard spacing between pins. The 'G' designation indicates gold plating on the contact surfaces to ensure reliable electrical performance and corrosion resistance. This component is designed for board-to-board or wire-to-board interconnections in compact electronic assemblies.

Headers, Male Pins Feature Summary

Precision turned contacts engineered for efficient surface-mount applications
Gold-plated contact surfaces to enhance conductivity and durability
Straight orientation suitable for vertical PCB mounting

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
Compact electronic assembly integration

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Fischer Elektronik documentation to confirm exact plating thickness and reel specifications. Ensure the selected variant matches the required automatic assembly parameters, such as reel diameter, if applicable. Cross-reference the part number with current datasheets to validate availability and technical compliance before procurement.

Headers, Male Pins Selection Notes

Select this component when a 2-row, 18-pin surface mount header with 2.54 mm pitch is required. The gold-plated version is appropriate for applications demanding high reliability and corrosion resistance. Consider the straight form factor for standard vertical mounting scenarios where space constraints allow for the specified profile.

Headers, Male Pins Part Context

This part belongs to the MK 226 SMD series of pin headers from Fischer Elektronik. The series offers various contact counts ranging from 6 to 24 positions. Variants are available with different plating options and packaging configurations, including tape-and-reel formats for automated manufacturing processes.
