MK 226 SMD 26 Z B SM

Headers, Male Pins Overview

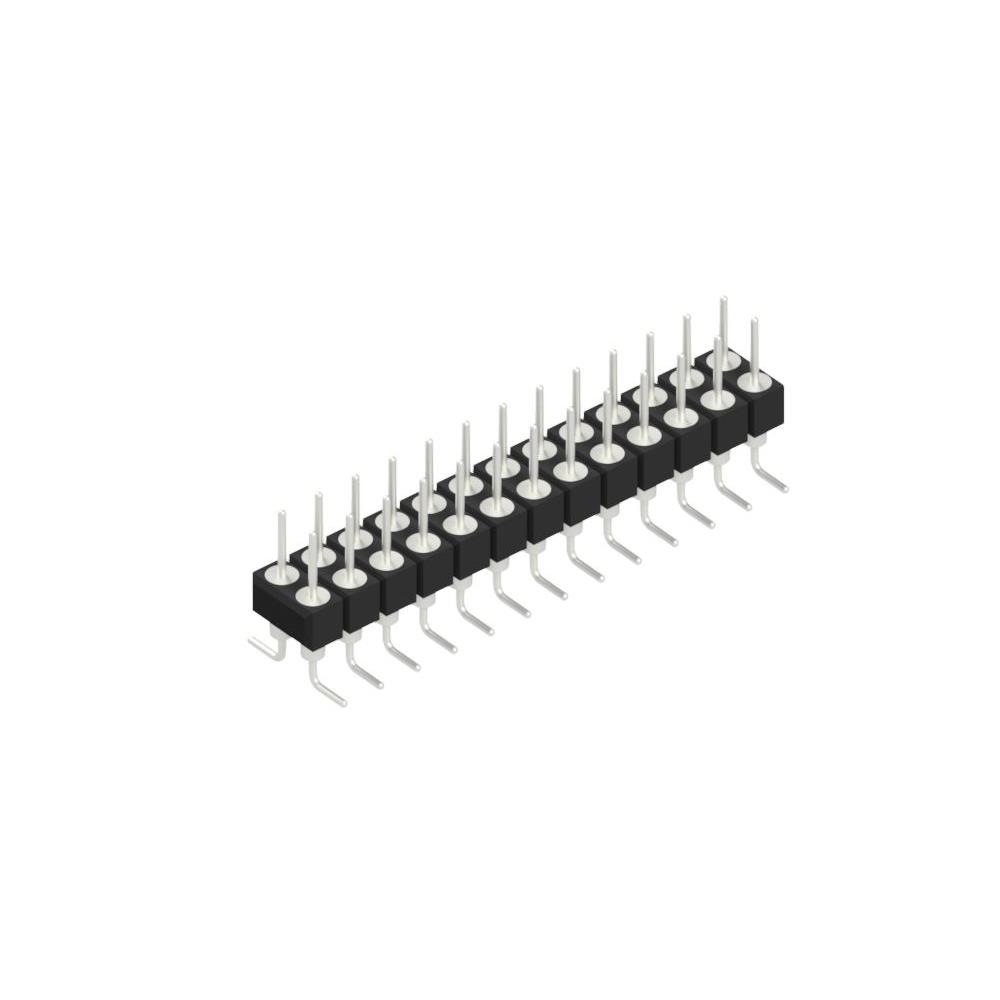

The MK 226 SMD 26 Z B SM is a surface mount connector header manufactured by Fischer Elektronik. It features 26 positions arranged in two rows with a 0.100 inch (2.54 mm) pitch. The component utilizes turned precision contacts designed for reliable surface-mount applications. Electrical specifications include a nominal current rating of 1.5 A and a voltage rating of 60 VDC. Key performance metrics specify a volume resistance of ≤10 mΩ, vibration resistance up to 15 g, and inter-contact capacitance of ≤0.4 pF.

Headers, Male Pins Feature Summary

• Turned precision contacts ensure reliable connection integrity
• Surface mount design facilitates efficient PCB assembly
• Two-row configuration supports high-density mounting

Headers, Male Pins Applications

• Surface mount electronic assemblies
• High-density circuit board interconnections
• Precision contact applications requiring vibration resistance

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin count, row configuration, and termination style. Ensure compatibility with automated surface mount assembly processes if reel packaging is required. Cross-reference the part number with the latest datasheet to confirm electrical ratings and mechanical dimensions match the design requirements.

Headers, Male Pins Selection Notes

Select this component when a two-row surface mount header with 26 positions is required. The 2.54 mm pitch suits standard through-hole and surface mount layouts. Consider the 1.5 A current rating and 60 VDC voltage limit for circuit design constraints. The turned precision contact construction offers advantages for applications demanding consistent mechanical stability and low contact resistance.

Headers, Male Pins Part Context

This part belongs to the MK 226 SMD series of connector headers from Fischer Elektronik. The series provides various position counts and row configurations for surface mount technology. These components are engineered for use in printed circuit boards where reliable electrical connections and compact form factors are essential for modern electronic device manufacturing.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative part numbers within the MK 226 SMD family that match the required position count and row arrangement. Verify that any substitute maintains identical pitch, current ratings, and surface mount compatibility.
