MK 226 SMD 42 Z B SM

Headers, Male Pins Overview

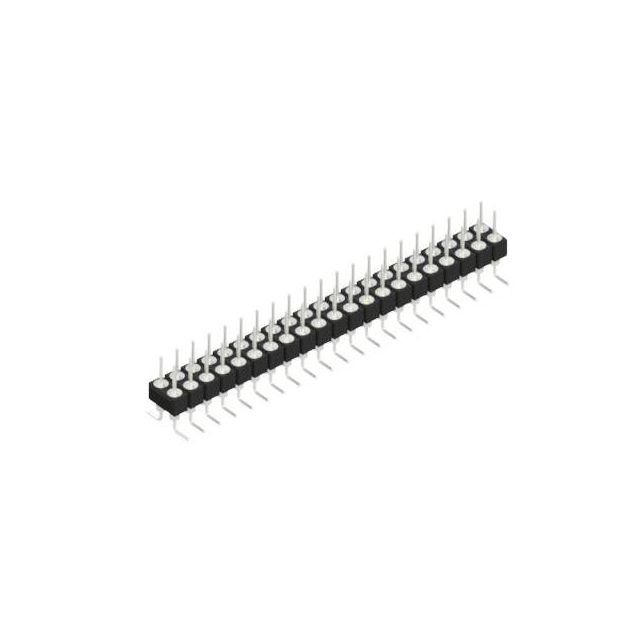

The MK 226 SMD 42 Z B SM is a rectangular connector header from Fischer Elektronik, designed for surface-mount technology (SMT) applications. It features 42 positions with a standard 2.54mm pitch spacing, ensuring precise alignment and reliable electrical connectivity on printed circuit boards. The component utilizes turned precision contacts made of brass, which are engineered to provide robust mechanical stability and consistent signal transmission in demanding electronic environments. This male header variant is specifically configured for vertical mounting, allowing for efficient board-to-board or cable-to-board interconnections while maintaining a low profile suitable for compact device designs.

Headers, Male Pins Feature Summary

• Turned precision contacts ensure reliable electrical connections
• Surface-mount design facilitates automated PCB assembly
• Vertical orientation supports compact electronic layouts

Headers, Male Pins Applications

• Industrial control systems requiring stable interconnects
• Consumer electronics with space-constrained designs
• Automotive electronic modules needing durable headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z B' against official Fischer Elektronik documentation to confirm contact plating and material specifications. Ensure compatibility with standard SMT reflow profiles and check for any environmental compliance certifications required for your target market. Cross-reference the pin count and pitch dimensions with your PCB footprint library to prevent assembly errors during production.

Headers, Male Pins Selection Notes

Select this component when high-density interconnection is required without compromising mechanical reliability. The 42-position configuration offers a balance between connectivity needs and board space efficiency. Consider the surface-mount format for improved manufacturing throughput compared to through-hole alternatives, particularly in high-volume production environments where consistent solder joint quality is critical for long-term performance.

Headers, Male Pins Part Context

This part belongs to the MK 226 SMD series, which focuses on precision-machined contacts for surface-mount applications. The series is characterized by its use of turned brass contacts, offering superior durability compared to stamped contacts. Fischer Elektronik designs these headers to meet rigorous industrial standards, ensuring consistent performance across various temperature ranges and mechanical stress conditions typical in modern electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other position variants such as MK 226 SMD 8 G SM or MK 226 SMD 82 ZB SM, provided the pin count matches the design requirements. Verify that alternative parts maintain the same 2.54mm pitch and surface-mount footprint to ensure mechanical interchangeability without redesigning the PCB layout.
