MK LP 40 50 G

$13.21

Description：Low profile
Series：MK LP 40
Mfr：Fischer Elektronik
Package：Bulk

SKU:5325680b8ac6 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MK LP 40 50 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is Low profile. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MK LP 40 50 G

Description：Low profile
Series：MK LP 40
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：50
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.333" (8.45mm)
Insulation Height：0.050" (1.27mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Zinc
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.5A
Voltage Rating：60VDC

Headers, Male Pins datasheet and documents for MK LP 40 50 G

MK LP 40 50 G

Headers, Male Pins Overview

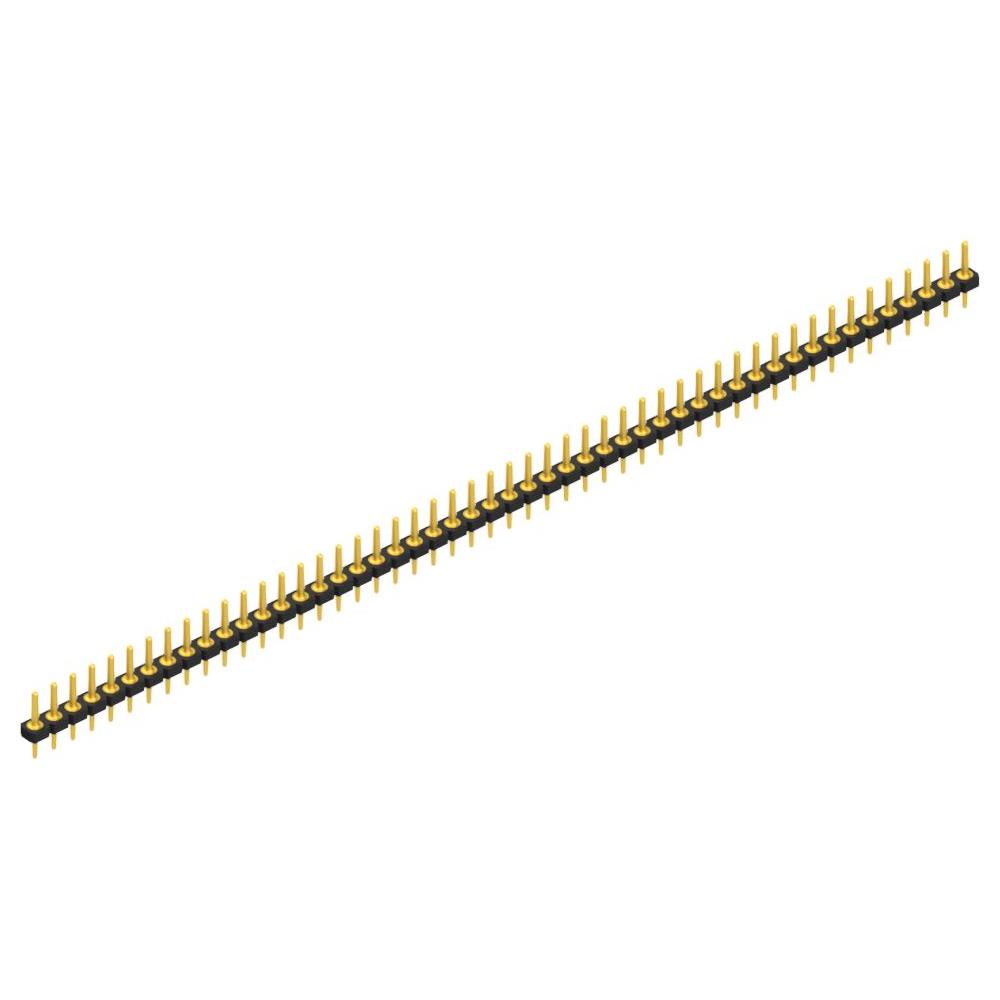

The Fischer Elektronik MK LP 40 50 G is a male pin header connector designed for through-hole mounting. It features a single row with 50 contacts and a 2.54 mm pitch. The component supports a current rating of 1.5 A and a voltage rating of 60 V DC, with an insulation resistance exceeding 107 Ω·m. Operating temperatures range from -40°C to +163°C. The contact plating consists of nickel underplating with gold thickness ≥0.2µm. The housing material is PA 4.6 GF, rated UL 94 V-0.

Headers, Male Pins Feature Summary

Low profile design suitable for space-constrained PCB layouts
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
High-temperature resistant PA 4.6 GF insulation housing

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
General electronic equipment requiring high reliability

Headers, Male Pins Procurement Notes

Verify the specific suffix '50 G' against official datasheets to confirm contact count and plating specifications. Ensure compatibility with standard 2.54 mm footprint designs. Check RoHS compliance status for environmental regulations. Confirm soldering parameters align with thermal profiles for tin or lead-free processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile male header with gold plating is required for high-reliability applications. The 50-contact configuration suits dense interconnect needs. Verify that the 1.5 A current rating meets circuit requirements. Consider the operating temperature range for extreme environment deployments.

Headers, Male Pins Part Context

This part belongs to the MK LP series of low-profile headers from Fischer Elektronik. These connectors are engineered for robust mechanical stability and electrical performance in industrial and consumer electronics. The series offers various contact counts and plating options to suit diverse design constraints.
