MK LP 43 41 Z

Headers, Male Pins Overview

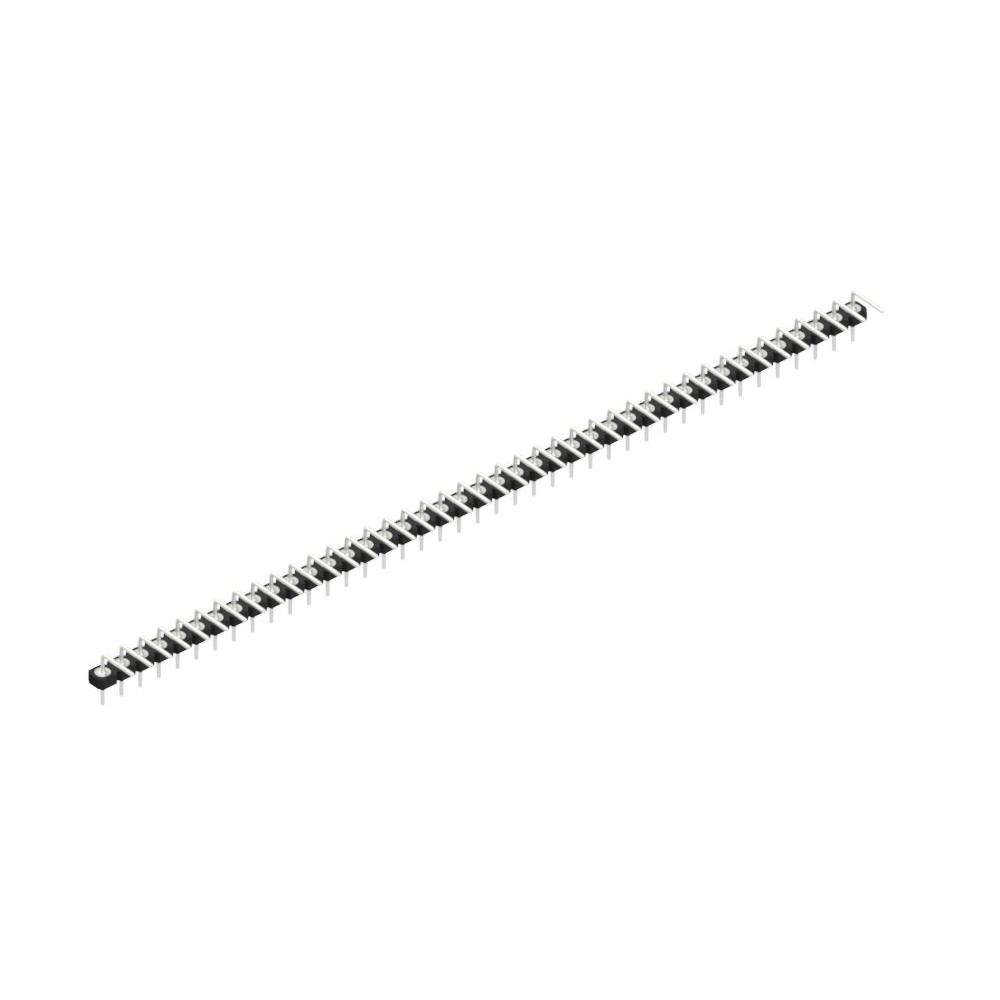

The Fischer Elektronik MK LP 43 41 Z is a male pin header connector designed for through-hole PCB mounting. It features a 41-position configuration with a standard 2.54 mm (0.100 inch) contact pitch. The component utilizes a tin-plated CuZn alloy contact material to ensure reliable electrical conductivity and corrosion resistance. Rated for a maximum current of 1.5 A, it offers a contact resistance of ≤10 mΩ and a capacitance of ≤0.4 pF. The operating temperature range spans from -40°C to +163°C, supporting robust performance in demanding electronic assemblies.

Headers, Male Pins Feature Summary

• Low-profile design optimized for space-constrained applications
• Through-hole solder connection for secure mechanical attachment
• Tin-plated contacts ensuring stable signal transmission

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics assembly requiring reliable headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Fischer Elektronik datasheet to confirm exact plating thickness and contact count. Ensure the selected variant matches the required through-hole footprint and pitch specifications for your PCB layout. Cross-reference the part number with authorized distributors to confirm availability and compliance with relevant RoHS directives before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 41-position male header with a 2.54 mm pitch is required for through-hole implementation. Consider the 1.5 A current rating and low contact resistance for signal integrity needs. Evaluate the -40°C to +163°C temperature range against environmental conditions. Confirm that the low-profile form factor fits within the mechanical constraints of the target enclosure or assembly stack-up.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik MK LP series of low-profile pin headers. The series is characterized by compact dimensions and durable tin-plated contacts suitable for various industrial and commercial applications. The MK LP 43 41 Z specifically denotes the 41-position variant within this standardized lineup, offering consistent quality and compatibility across Fischer Elektronik's broader connector portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik 41-position headers with identical 2.54 mm pitch and through-hole mounting, such as variants within the same MK LP family. Verify mechanical dimensions and electrical ratings match exactly. Generic replacements require careful validation of contact material, plating thickness, and thermal endurance to ensure equivalent performance.
