MK10DX256VML7

Microcontrollers Overview

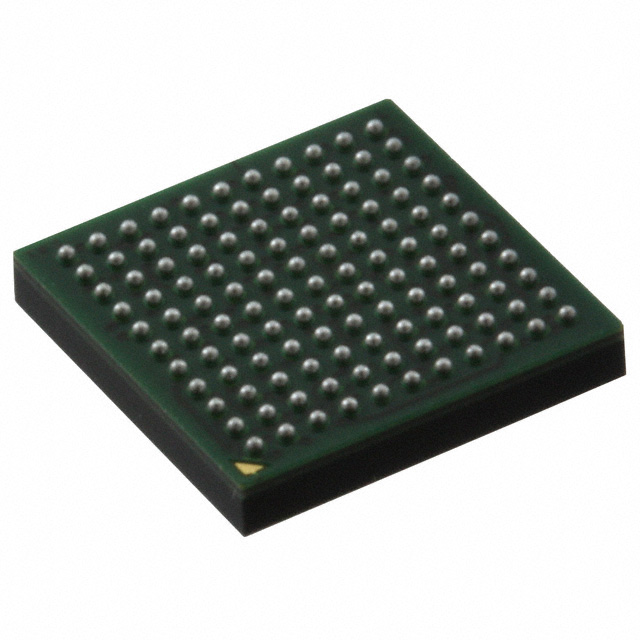

The MK10DX256VML7 is a Kinetis K10 microcontroller featuring an ARM Cortex-M4 core with DSP capabilities. It integrates 256 kB of program flash memory and operates at a maximum CPU frequency of 72 MHz. The device supports a supply voltage range of 1.71 V to 3.6 V and functions within an ambient temperature range of -40°C to 105°C. It utilizes a MAPBGA package with 104 pins.

Microcontrollers Feature Summary

• Supports ten low-power modes for application-specific power optimization
• Includes a 16-channel DMA controller supporting up to 63 request sources
• Features hardware CRC module and 128-bit unique identification number
• Integrates two 16-bit SAR ADCs with programmable gain amplifiers

Microcontrollers Applications

• Industrial control systems requiring low-power operation
• Human-machine interface applications utilizing touch sensor interfaces
• Motor control applications supported by DSP instructions
• Communication gateways using CAN, SPI, I2C, UART, and I2S modules

Microcontrollers Procurement Notes

Verify the specific ordering suffix 'ML7' corresponds to the 104-pin MAPBGA package and 72 MHz speed grade. Confirm that the component meets the required operating temperature range of -40°C to 105°C. Ensure compatibility with the 1.71 V to 3.6 V supply voltage specifications during procurement validation.

Microcontrollers Selection Notes

Select this model when a balance of processing performance and power efficiency is required. The inclusion of DSP instructions makes it suitable for signal processing tasks. Consider the 104-pin MAPBGA package constraints for PCB layout. Verify peripheral requirements against the available communication interfaces and analog modules.

Microcontrollers Part Context

This part belongs to the NXP Kinetis K10 sub-family, designed for cost-sensitive embedded applications. It shares architectural similarities with other K10 variants but differs in memory size, package type, and clock speed. The family emphasizes low power consumption and integrated connectivity options for general-purpose microcontroller needs.

Microcontrollers Replacement Considerations

Compatible substitutes include MK10DX128VML7 and MK10DX256VLL7, provided pinout and package dimensions are verified. Ensure the replacement maintains the same core architecture and peripheral set.
