MKE02Z64VLD2

Microcontrollers Overview

The MKE02Z64VLD2 is a microcontroller from the NXP Kinetis KE02 sub-family, built on an ARM Cortex-M0+ core. It features 64 KB of flash memory and 4 KB of RAM. The device operates at a maximum CPU frequency of 20 MHz with a supply voltage range of 2.7 V to 5.5 V. It is housed in a 44-pin LQFP package (10 mm x 10 mm) and supports an ambient operating temperature range of -40°C to +105°C.

Microcontrollers Feature Summary

• Supports operation across a wide voltage range of 2.7 V to 5.5 V for robust performance in electrically noisy environments.
• Integrates analog peripherals including a 16-channel 12-bit SAR ADC and two analog comparators with a 6-bit DAC.
• Includes multiple communication interfaces such as SPI, UART, and I2C modules alongside various timer options.

Microcontrollers Applications

• Cost-sensitive embedded applications requiring high reliability
• Systems operating in electrically noisy environments
• General-purpose microcontroller solutions

Microcontrollers Procurement Notes

Verify the specific part number against the official NXP ordering guide to ensure compatibility with the required package and silicon revision. Confirm that the selected variant matches the necessary memory size and pin configuration for your design requirements before procurement.

Microcontrollers Selection Notes

Select this component when a 20 MHz ARM Cortex-M0+ processor is needed with 64 KB of flash storage. Ensure the application requires a 44-pin LQFP package and can operate within the specified 2.7 V to 5.5 V voltage range and -40°C to +105°C temperature limits.

Microcontrollers Part Context

This device belongs to the Kinetis E series, specifically the KE02 sub-family. These microcontrollers are designed for entry-level 32-bit solutions, offering pin compatibility with other Kinetis E series devices and NXP 8-bit S08P series parts to facilitate easy migration and scalability.

Microcontrollers Replacement Considerations

MKE02Z64VLC2R

Microcontrollers FAQ

What is the maximum operating frequency of the MKE02Z64VLD2?

The maximum CPU frequency is 20 MHz.

Does the MKE02Z64VLD2 support operation in Stop mode?

Yes, the device supports Stop mode operation, allowing for reduced power consumption while maintaining certain peripheral functionalities.

What type of package does the MKE02Z64VLD2 use?

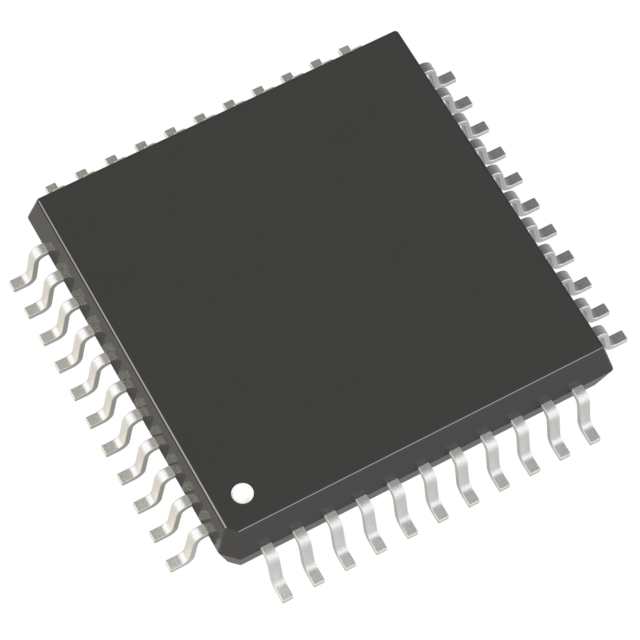

It uses a 44-pin Low Profile Quad Flat Package (LQFP) with dimensions of 10 mm x 10 mm.
