MKL27Z32VDA4

Microcontrollers Overview

The MKL27Z32VDA4 is a Kinetis KL27 microcontroller featuring an ARM Cortex-M0+ core operating at 48 MHz. It integrates 32 KB of program flash memory and 8 KB of SRAM, supported by a 16 KB ROM with a built-in bootloader. The device includes a full-speed USB 2.0 device controller capable of crystal-less operation. Power management supports down to 46 µA/MHz in very low power run mode and 1.68 µA in stop mode with RAM and RTC retained. It operates within a voltage range of 1.71 V to 3.6 V and a temperature range of -40 °C to 105 °C.

Microcontrollers Feature Summary

• USB Full-Speed 2.0 device controller supporting crystal-less operation
• Low-power peripherals including LPUART, ADC, and FlexIO for background processing
• Hardware CRC module for data integrity verification
• Flexible static power modes optimized for battery-powered applications

Microcontrollers Applications

• Battery-powered IoT nodes requiring low-power connectivity
• Cost-sensitive embedded systems needing USB communication
• Portable medical devices and consumer electronics
• Industrial sensor interfaces with periodic wake-up requirements

Microcontrollers Procurement Notes

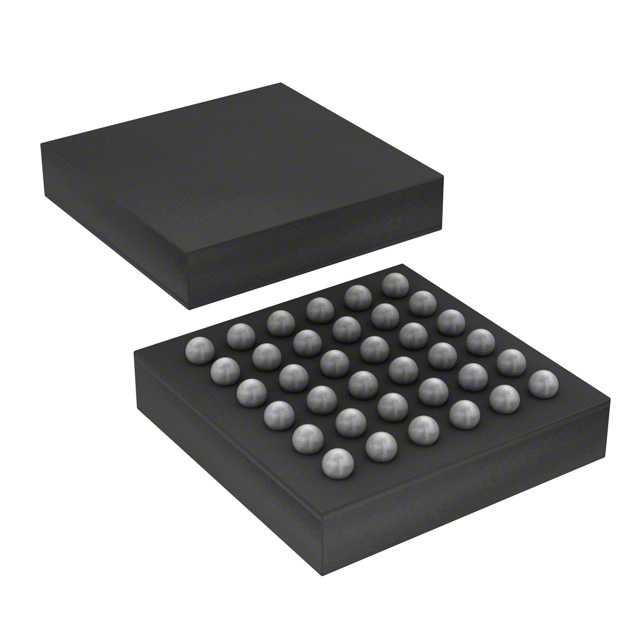

Verify the specific package variant (XFBGA) and temperature grade against project requirements. Confirm that the ordering suffix matches the exact pin count and memory configuration needed. Ensure compatibility with existing board layouts regarding the 36-pin XFBGA footprint dimensions and pitch specifications.

Microcontrollers Selection Notes

Select this model when crystal-less USB functionality is required to reduce BOM costs. Consider the 32 KB flash limit for firmware size constraints. Evaluate the 8 KB SRAM availability for real-time data buffering needs. Verify that the 48 MHz clock speed meets the application's processing latency requirements.

Microcontrollers Part Context

This component belongs to the NXP Kinetis KL27 series, designed for ultra-low-power applications. It shares architectural similarities with other KLx7 family members but offers distinct memory and package options. The series targets cost-sensitive markets while maintaining ARM Cortex-M0+ performance standards.

Microcontrollers Replacement Considerations

Compatible substitutes include other MKL27Z variants with different memory sizes or packages, such as MKL27Z64VDA4 for increased storage. Cross-family migration to MCX A series may be considered for enhanced security features.
