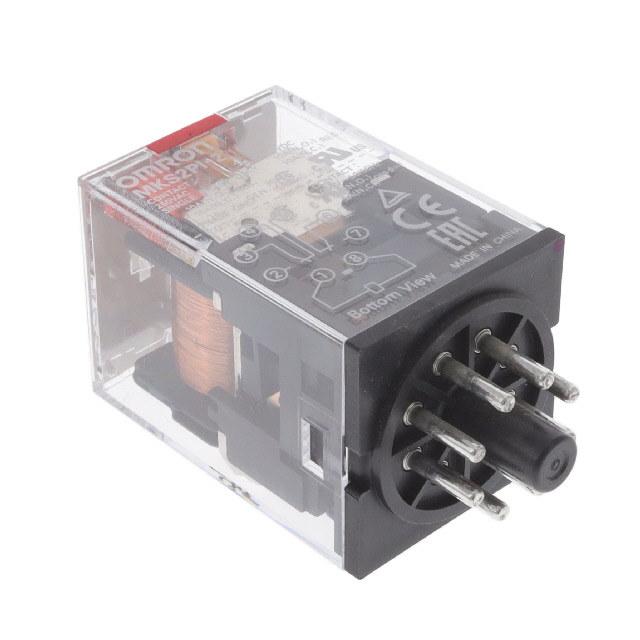

MKS2PI-2 AC120

MKS2PI-2 AC120 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE DPDT 10A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for MKS2PI-2 AC120

• Description：RELAY GEN PURPOSE DPDT 10A 120V
• Series：MK-S
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：120VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC, 30VDC - Max
• Load - Max Switching：2500VA, 300W
• Coil Current：19.3 mA
• Coil Type：Non Latching
• Features：Mechanical Indicator, Test Button
• Termination Style：Plug In, 8 Pin (Octal)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：96 VAC
• Must Release Voltage：36 VAC
• Operating Temperature：-40°C ~ 60°C
• Contact Material：Silver Tin Indium (AgSnIn)
• Approval Agency：CSA, cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for MKS2PI-2 AC120
