ML5233-001TCZ07FL

Overview

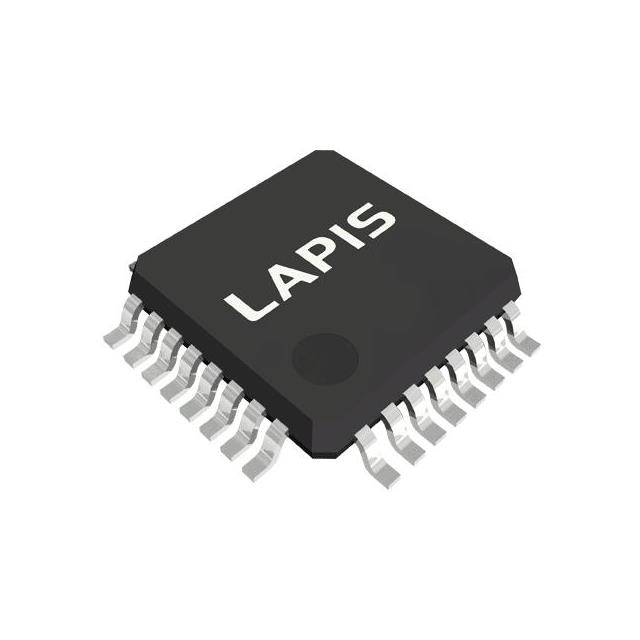

The ML5233-001TCZ07FL is a lithium-ion battery management LSI manufactured by ROHM Semiconductor. It operates within a supply voltage range of 5 V to 60 V and features output voltages of 2.4 V and 4.3 V. The component is housed in an LQFP-32 package designed for surface mount technology (SMD/SMT). It supports a maximum operating temperature of +85 °C and is classified as a new product from the manufacturer.

Feature Summary

• Integrated lithium-ion battery protection logic
• Wide input voltage tolerance up to 60 V
• Dual output voltage configuration

Applications

• Lithium-ion battery pack protection systems
• Portable electronic device power management
• Industrial battery management units

Procurement Notes

Verify the specific suffix TCZ07FL against the official datasheet to confirm pinout and electrical characteristics match your design requirements. Ensure the LQFP-32 package dimensions align with your PCB footprint. Confirm the 85 °C maximum operating temperature meets your system's thermal constraints before finalizing procurement.

Selection Notes

Select this component when designing circuits requiring integrated protection for single or multi-cell lithium-ion configurations within a 60 V limit. The LQFP-32 package offers a compact solution for high-density boards. Consider the 5 V to 60 V operating range compatibility with your system's power supply architecture.

Part Context

This part belongs to the ML5233 series of battery management ICs from ROHM Semiconductor. These devices are engineered specifically for protecting rechargeable lithium-ion batteries in various consumer and industrial applications, providing essential safety functions through a single integrated circuit solution.

Replacement Considerations

Consult the official ROHM replacement guide for direct substitutes. Verify pin-to-pin compatibility and electrical specifications if considering alternative packages or updated series revisions.
