MLB03-152-RC

Overview

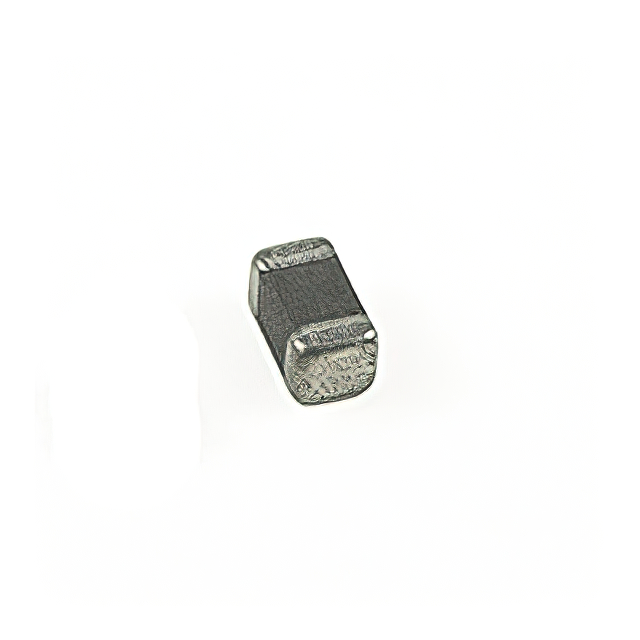

The MLB03-152-RC is a multilayer ferrite bead manufactured by Allied Components International. It features a 0402 (1005 Metric) surface-mount package and offers an impedance of 1.5 kΩ at 100 MHz. The component is RoHS compliant and designed for noise suppression in high-frequency circuits.

Feature Summary

• Multilayer construction for compact noise filtering
• High impedance performance at 100 MHz
• Surface-mount design for automated assembly

Applications

• High-speed data line noise suppression
• Power supply input filtering
• RF circuit interference reduction

Procurement Notes

Verify the specific impedance tolerance and DC resistance values against the official datasheet before integration. Confirm RoHS compliance status and packaging quantity requirements with the supplier to ensure alignment with manufacturing standards.

Selection Notes

Select this component for applications requiring significant attenuation in the VHF range within a minimal footprint. Ensure the operating current remains below the rated limit to prevent saturation and maintain effective noise suppression capabilities.

Part Context

Allied Components International designs and manufactures magnetic components, including ferrite beads, for commercial and industrial markets. This part belongs to their standard multilayer ferrite bead series, intended for general-purpose EMI suppression in electronic assemblies.

Replacement Considerations

Consult manufacturer cross-reference lists for verified substitutes. Ensure replacement parts match the 0402 package dimensions and 1.5 kΩ impedance specification to maintain circuit performance integrity.
