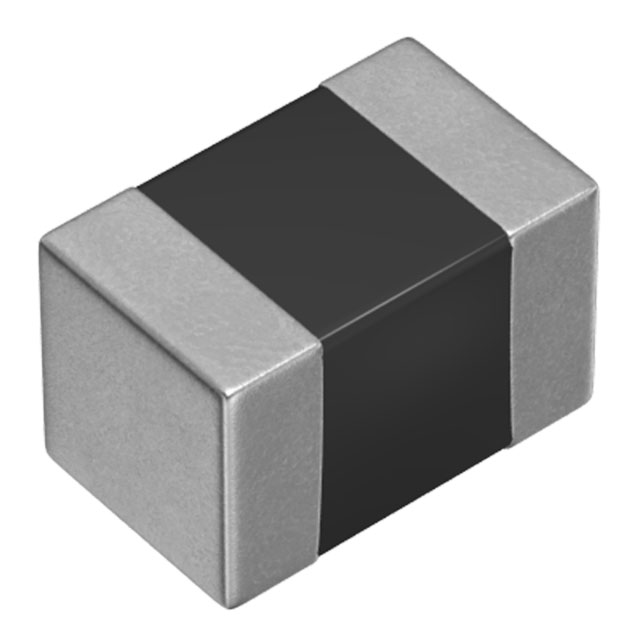

MLF2012A2R7MTD25

$0.08

Description：FIXED IND 2.7UH 50MA 550MOHM SMD
Series：MLF
Mfr：TDK Corporation
Package：Tape & Reel (TR)

SKU:86d86a1f2ed6 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MLF2012A2R7MTD25 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 2.7UH 50MA 550MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for MLF2012A2R7MTD25

Description：FIXED IND 2.7UH 50MA 550MOHM SMD
Series：MLF
Mfr：TDK Corporation
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：Ferrite
Inductance：2.7 µH
Tolerance：±20%
Current Rating (Amps)：50 mA
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：550mOhm Max
Q @ Freq：45 @ 10MHz
Frequency - Self Resonant：70MHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：10 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：0805 (2012 Metric)
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)：0.057" (1.45mm)
Features：-

Fixed Inductors datasheet and documents for MLF2012A2R7MTD25

MLF2012A2R7MTD25

Fixed Inductors Overview

The MLF2012A2R7MTD25 is a shielded multilayer inductor from TDK's MLF series, designed for automotive applications. It features an inductance of 2.7 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 0.55 Ω and a rated current of 50 mA. It operates within a temperature range of -55°C to 125°C and meets the AEC-Q200 qualification standard. The physical dimensions are 2.0 mm x 1.25 mm [EIA 0805], with a maximum height of 1.25 mm.

Fixed Inductors Feature Summary

Shielded multilayer construction using ferrite core material
Qualified for automotive environments under AEC-Q200 standards
Non-directional surface mount design

Fixed Inductors Applications

Automotive electronic circuit filtering
Power supply input/output chokes
EMI suppression in vehicle control units

Fixed Inductors Procurement Notes

Verify the specific suffix 'TD25' against the manufacturer datasheet to ensure compatibility with required termination materials and moisture sensitivity levels. Confirm that the AEC-Q200 certification status aligns with the target application's reliability requirements. Check for any recent product change notices (PCN) regarding material composition or manufacturing site updates.

Fixed Inductors Selection Notes

Select this component when a compact 0805 footprint is required for automotive-grade shielding. Ensure the 50 mA rated current meets the circuit's operational load without saturation. The 0.55 Ω DCR should be evaluated against voltage drop constraints. Consider the 2.7 µH value for the specific frequency response needs of the target filter or choke application.

Fixed Inductors Part Context

This part belongs to TDK's MLF series of multilayer chip inductors. These components utilize proprietary multilayer technology with magnetic materials, eliminating wire windings. The series is specifically engineered for high-reliability applications, including automotive electronics, where space constraints and thermal stability are critical factors.
