MLG0402P0N5BT000

Fixed Inductors Overview

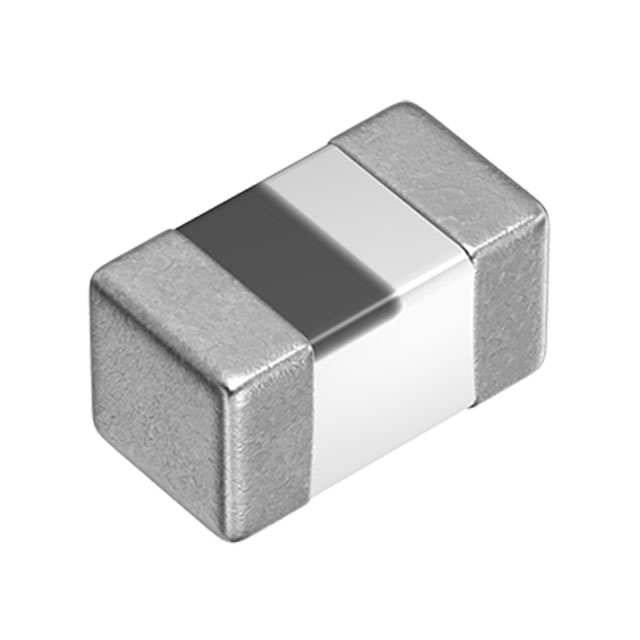

The MLG0402P0N5BT000 is a multilayer RF inductor from TDK's MLG-P series, designed for ultra-high frequency applications. It features an inductance of 0.5 nH with a tolerance of ±0.1 nH and operates at a test frequency of 500 MHz. The component has a self-resonant frequency of 20 GHz and a maximum DC resistance of 200 mOhms. Rated for a maximum DC current of 350 mA, it utilizes a ceramic core within a shielded 01005 (0402 metric) surface-mount package measuring 0.4 mm x 0.2 mm x 0.22 mm. It supports a working temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Ultra-compact 01005 footprint optimized for high-density PCB layouts
• Shielded construction minimizes electromagnetic interference coupling
• High self-resonant frequency capability for RF signal integrity

Fixed Inductors Applications

• RF matching networks in wireless communication modules
• Impedance matching circuits for mobile devices
• Signal filtering in high-frequency data transmission systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly. Cross-reference the part number with official distributor catalogs to validate authenticity and traceability. Ensure storage conditions meet the specified humidity sensitivity等级 before soldering processes begin.

Fixed Inductors Selection Notes

Select this component when circuit design requires minimal parasitic effects at frequencies approaching 20 GHz. The shielded type is preferred over unshielded variants to prevent crosstalk in dense multi-layer boards. Evaluate the 350 mA current rating against peak load requirements to avoid saturation. The 01005 size is suitable only if board space constraints strictly prohibit larger packages like 0201 or 0402.

Fixed Inductors Part Context

This part belongs to the MLG-P series, which focuses on miniaturized inductors for portable electronics. The MLG0402P0N5BT000 represents a specific value within the 0.5 nH range, offering a balance between low impedance and high Q-factor. It complements TDK's broader portfolio of passive components used in consumer electronics and automotive infotainment systems.

Fixed Inductors Replacement Considerations

MLG0402S1N2ST000

Fixed Inductors FAQ

Is the MLG0402P0N5BT000 shielded?

Yes, the datasheet specifies that this component is shielded.

What is the maximum operating temperature?

The maximum operating temperature is +125°C.
