MLG0603S13NJT000

$0.09

Description：FIXED IND 13NH 180MA 900MOHM SMD
Series：MLG
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:15d993aabf19 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

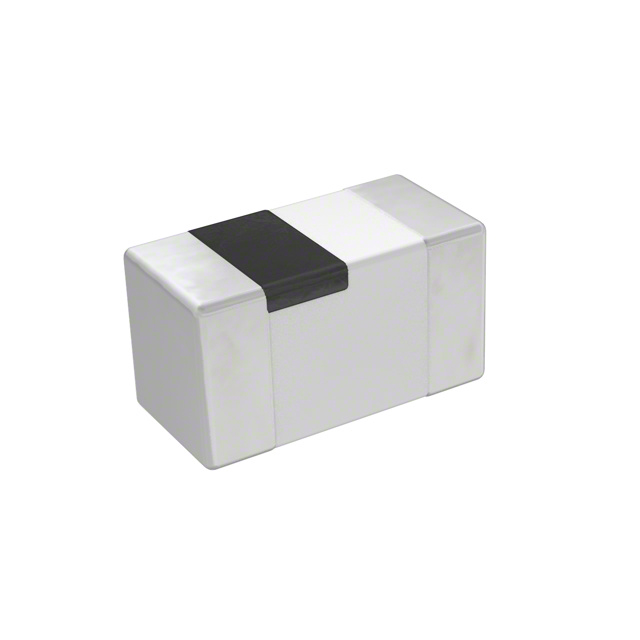

MLG0603S13NJT000 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 13NH 180MA 900MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for MLG0603S13NJT000

Description：FIXED IND 13NH 180MA 900MOHM SMD
Series：MLG
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic, Non-Magnetic
Inductance：13 nH
Tolerance：±5%
Current Rating (Amps)：180 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：900mOhm Max
Q @ Freq：6 @ 100MHz
Frequency - Self Resonant：2.7GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0201 (0603 Metric)
Supplier Device Package：0201 (0603 Metric)
Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)：0.013" (0.33mm)
Features：-

Fixed Inductors datasheet and documents for MLG0603S13NJT000

MLG0603S13NJT000

Fixed Inductors Overview

The MLG0603S13NJT000 is a fixed multilayer inductor from TDK, designed for surface-mount applications. It features an inductance of 13 nH with a tolerance of ±5%. The component has a maximum DC resistance of 900 mΩ and a rated current of 180 mA. Operating within a temperature range of -55°C to +125°C, it utilizes a non-magnetic ceramic core. The package dimensions are 0.60mm x 0.30mm x 0.33mm (0201/0603 metric).

Fixed Inductors Feature Summary

Unshielded multilayer construction using non-magnetic ceramic core material.
Designed for high-frequency RF signal processing applications.
Surface-mount installation suitable for automated PCB assembly.

Fixed Inductors Applications

RF cellular communication modules
RF base station circuits
RF connectivity devices

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current availability status. Ensure that the selected component meets all required electrical specifications for the target application environment. Cross-reference datasheet parameters such as inductance tolerance and rated current before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component based on its 13 nH inductance value and 180 mA current rating. Consider the 900 mΩ DC resistance limit for power loss calculations. Verify compatibility with the 0201 footprint and operating temperature range requirements. Confirm RoHS compliance status if environmental regulations apply to the end product.

Fixed Inductors Part Context

This component belongs to the MLG series of high-frequency inductors manufactured by TDK Corporation. The series is characterized by small form factors and stable performance at radio frequencies. These components are widely used in modern electronic devices requiring compact passive filtering solutions.
