MLP2520V1R5MT0S1

Fixed Inductors Overview

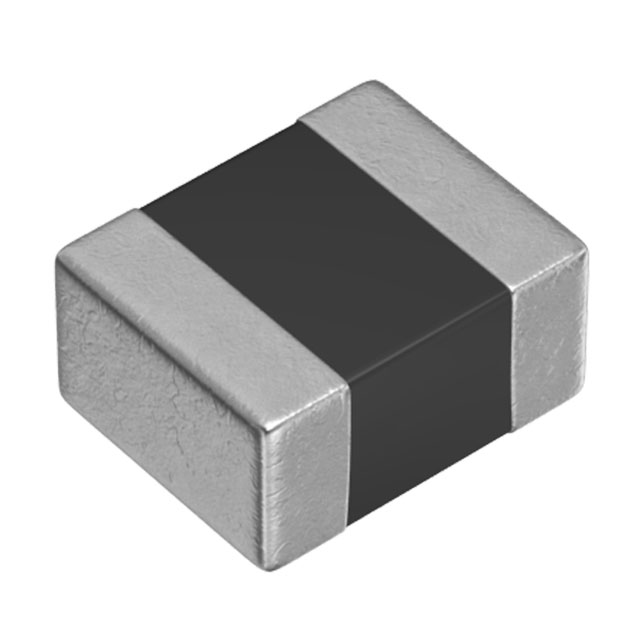

The MLP2520V1R5MT0S1 is a shielded multilayer power inductor manufactured by TDK Corporation. It features an iron ferrite core and measures 2.5mm x 2.0mm x 0.85mm. The component provides an inductance of 1.5µH with a tolerance of ±20%. It supports a maximum DC current of 1.4A and has a maximum DC resistance of 130mΩ. The device operates within a temperature range of -40°C to +125°C and is tested at a frequency of 2MHz.

Fixed Inductors Feature Summary

• Shielded multilayer construction utilizing iron ferrite material for magnetic containment
• Designed for surface mount assembly on printed circuit boards
• Capable of handling high direct current loads with low resistance characteristics

Fixed Inductors Applications

• Power supply filtering circuits
• Signal processing applications requiring magnetic shielding
• General purpose electronic equipment power stages

Fixed Inductors Procurement Notes

Verify the specific suffix 'MT' against official TDK documentation to confirm manufacturing details, as datasheets may list alternative suffixes like 'ST'. Ensure the requested quantity matches standard reel packaging requirements. Confirm RoHS compliance status directly with the supplier or manufacturer representative prior to finalizing orders to meet environmental regulations.

Fixed Inductors Selection Notes

Select this component when a compact 1008 footprint is required for power management tasks. The 1.5µH value suits moderate frequency switching applications. Verify that the 1.4A current rating meets the peak load requirements of the target circuit. Consider the 130mΩ resistance impact on thermal performance and efficiency within the system design constraints.

Fixed Inductors Part Context

This part belongs to the MLP series of fixed inductors from TDK. The series offers various inductance values and current ratings in standardized metric footprints. These components are designed for reliable operation in commercial electronic devices requiring stable power delivery and noise suppression in space-constrained environments.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult TDK's official cross-reference tools or authorized distributor databases for compatible alternatives. Ensure any replacement maintains identical electrical parameters and physical dimensions for proper board integration.
