Product Detailed Parameters
- Description：IC ACTUATOR DVR SRL LINK 24SOIC
- Series：-
- Mfr：Melexis Technologies NV
- Package：Tape & Reel (TR),Cut Tape (CT)
- Applications：Actuator
- Current - Supply：5.5mA
- Voltage - Supply：5V ~ 12V
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount
- Package / Case：24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package：24-SOIC
- Grade：-
- Qualification：-
Download product information
Overview

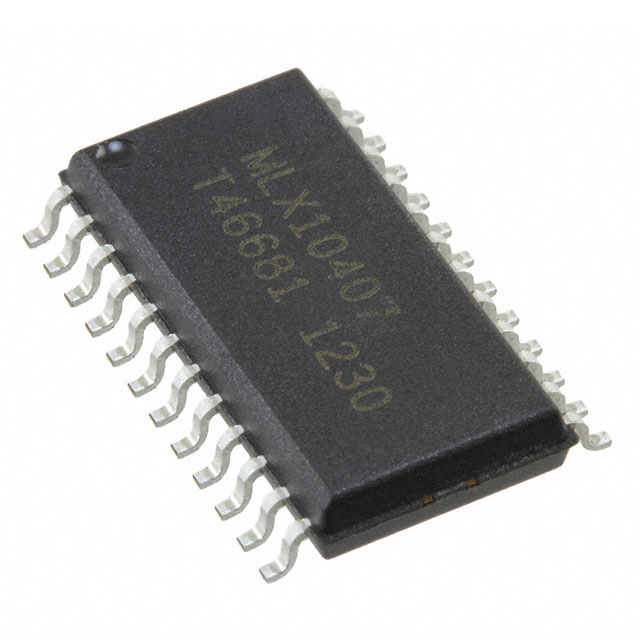

The MLX10407EDF-AAA-000-RE is a five-channel gauge driver integrated circuit manufactured by Melexis Technologies NV. It features an integrated serial link for communication and control. The device is housed in a 24-pin SOIC W package and operates within a temperature range of -40°C to 85°C. It is classified under Motor, Motion, and Ignition Controllers & Drivers, specifically designed for actuator applications requiring multi-channel drive capabilities with serial interface support.
Feature Summary
- Five-channel gauge driver architecture
- Integrated serial link interface
- Designed for actuator control applications
Applications
- Actuator control systems
- Gauge driver circuits
- Automotive instrumentation modules
Procurement Notes
This component is listed as obsolete or discontinued by major distributors such as Mouser. Verification of current availability through alternative channels or authorized legacy stock providers is essential before procurement planning. Confirm the specific suffix RE indicates reel packaging if required for assembly processes. Ensure compatibility with existing design infrastructure given the end-of-life status.
Selection Notes
Select this part only if the design requires a five-channel gauge driver with serial communication capabilities from Melexis. Verify that the 24-pin SOIC W package fits the PCB layout constraints. Consider the operating temperature range of -40°C to 85°C against environmental requirements. Since the lifecycle is obsolete, evaluate long-term supply chain risks and potential need for redesign.
Part Context
The MLX10407 series represents Melexis' solution for multi-channel actuator driving with digital interface integration. This specific variant includes the serial link feature for simplified wiring and control logic. It falls under the PMIC category specialized for motor and motion control applications, targeting industries requiring precise gauge or actuator management.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Due to the obsolete lifecycle, direct pin-to-pin replacements may not be officially documented. Consult Melexis technical support for potential next-generation alternatives or redesign recommendations.
