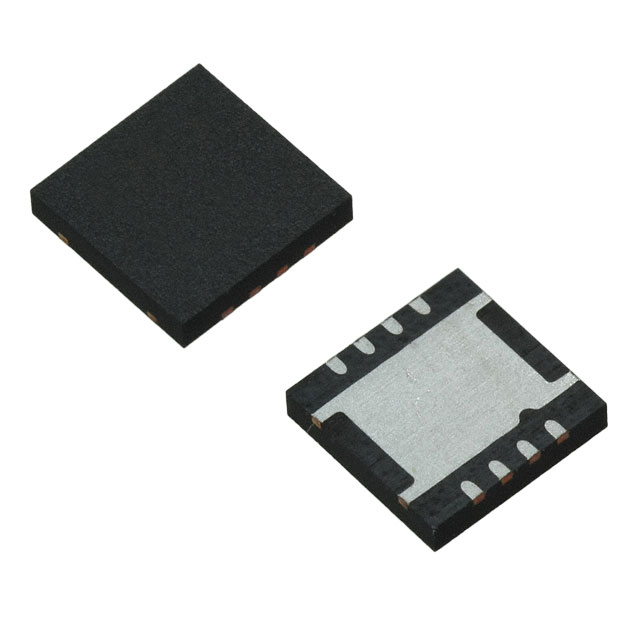

MLX10801RLD is listed in the LED Driver IC range at ChipApex. The manufacturer field lists Melexis Technologies NV. Its product description is IC LED DRIVER PS 750MA 8MLPD. Review the specifications below when checking this part for your BOM.
LED Driver IC specifications for MLX10801RLD
- Description：IC LED DRIVER PS 750MA 8MLPD
- Series：-
- Mfr：Melexis Technologies NV
- Package：Tube
- Type：Power Switch
- Topology：-
- Internal Switch(s)：Yes
- Number of Outputs：1
- Voltage - Supply (Min)：6V
- Voltage - Supply (Max)：28V
- Voltage - Output：-
- Current - Output / Channel：750mA
- Frequency：1MHz
- Dimming：-
- Applications：-
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-VDFN Exposed Pad
- Supplier Device Package：8-MLPD (5x5)
- Grade：Automotive
- Qualification：-
LED Driver IC datasheet and documents for MLX10801RLD
LED Driver IC Overview
The MLX10801RLD is a power LED driver IC designed for automotive applications. It operates with a switching frequency of 1MHz and supports an output current of 750mA. The device features dimming capability and utilizes an 8-MLPD (5x5) package with an exposed pad. It is rated for surface mount mounting and functions within an operating temperature range of -40°C to 105°C (TA).
LED Driver IC Feature Summary
- Integrated power switch for driving high-power LEDs in automotive environments.
- Supports dimming functionality for light control applications.
- Designed for compact surface mount integration with thermal exposure pad.
LED Driver IC Applications
- Automotive exterior lighting systems
- Under-hood lighting modules
- High-power LED driver circuits
LED Driver IC Procurement Notes
Verify the specific suffix RLD against official Melexis documentation to confirm pinout and packaging details. Ensure compatibility with automotive grade requirements (-40°C to 105°C). Cross-reference the 8-MLPD package dimensions with assembly specifications. Confirm authenticity through authorized distributors only.
LED Driver IC Selection Notes
Select this component for single-output LED driving tasks requiring 750mA capacity. The 1MHz frequency allows for smaller external passive components compared to lower-frequency alternatives. Verify that the thermal performance of the 8-MLPD package meets the system's heat dissipation needs under maximum load conditions.
LED Driver IC Part Context
This part belongs to the MLX10801 series from Melexis Technologies NV, specialized for automotive power management. It serves as a dedicated solution for driving single high-power LEDs, distinguishing itself from multi-channel drivers or general-purpose regulators by its optimized topology for LED loads.
LED Driver IC Replacement Considerations
Consult official substitution lists for equivalent automotive-grade LED drivers. Verify pin-to-pin compatibility and electrical parameters such as output current and switching frequency before replacing.
LED Driver IC FAQ
What is the maximum output current for the MLX10801RLD?
The device supports an output current of 750mA.
Is the MLX10801RLD suitable for high-temperature environments?
Yes, it is rated for an operating temperature range of -40°C to 105°C (TA), making it suitable for automotive applications.
