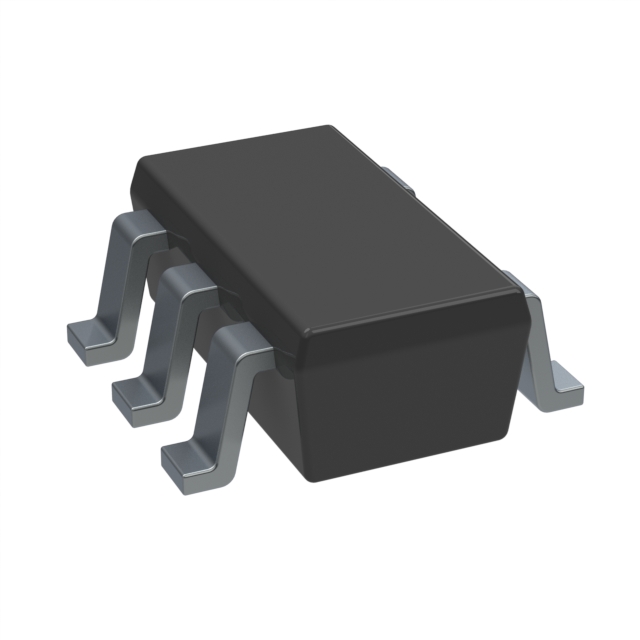

MM3513D02NRH

Overview

The MM3513D02NRH is a voltage monitor IC designed for balancing Li-ion cells. It functions as a precision voltage detector to manage cell balance operations within battery packs.

Feature Summary

• Provides precise voltage monitoring for individual cells in lithium-ion battery systems
• Supports active balancing mechanisms by detecting specific voltage thresholds

Applications

• Lithium-ion battery pack management
• Cell balancing circuits in portable electronics
• Battery protection system monitoring

Procurement Notes

Verify the exact suffix NRH against the manufacturer's official datasheet to confirm pinout and tolerance specifications. Ensure compatibility with the target battery management architecture before integration.

Selection Notes

Select this component when a dedicated voltage monitor for Li-ion cell balancing is required. Confirm that the detection voltage aligns with the specific cell chemistry and balancing strategy of the design.

Part Context

This part belongs to the MM3513 series from Mitsumi, which includes variants like MM3513A01NRH and MM3513B01NRH. These are specialized ICs for managing single-cell voltages in rechargeable battery applications.

Replacement Considerations

Check for other MM3513 variants (e.g., MM3513C01NRH) if different detection voltages are needed. Verify package compatibility with existing PCB footprints.
