MM74HC374SJ

Flip Flops Overview

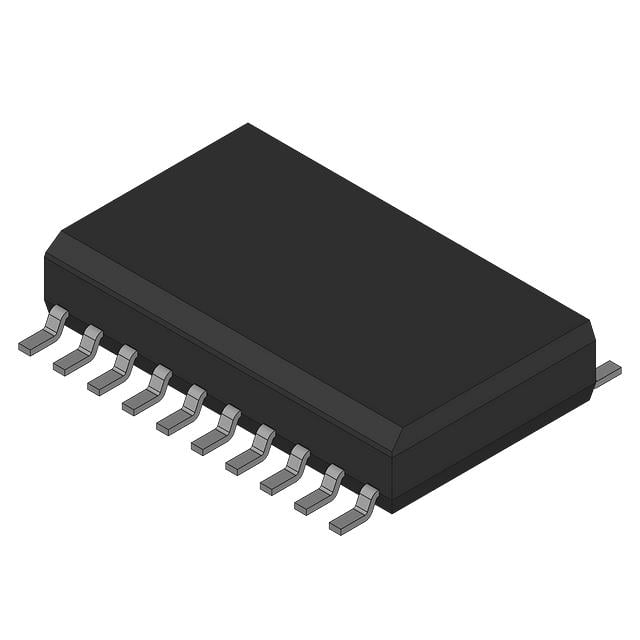

The MM74HC374SJ is an octal D-type flip-flop with three-state outputs manufactured by onsemi. It belongs to the HC logic series and features a single-ended input configuration with non-inverting polarity. The device operates within a supply voltage range of 2 V to 6 V and supports surface-mount installation in a SOP-20 package. Key electrical parameters include a propagation delay of 230 ns, with high-level output current of -7.8 mA and low-level output current of 7.8 mA. It functions across an operating temperature range from -40°C to +85°C.

Flip Flops Feature Summary

• Octal D-type flip-flop architecture with eight independent circuits
• Three-state output capability for bus-oriented systems
• Non-inverting single-ended input logic configuration

Flip Flops Applications

• Parallel data storage applications
• Bus-oriented memory register implementations
• Clock-controlled data transfer systems

Flip Flops Procurement Notes

Verify component authenticity through authorized channels as this specific part number indicates end-of-life status. Confirm package integrity and pin alignment against SOP-20 specifications before integration. Check RoHS compliance documentation for environmental regulatory adherence. Ensure handling procedures account for moisture sensitivity levels associated with surface-mount devices during assembly processes.

Flip Flops Selection Notes

Select this component when designing systems requiring parallel data latching with high-impedance states. Consider the 2V to 6V operating range for compatibility with various logic families. Evaluate the 230 ns propagation delay against system timing requirements. Verify that the SOP-20 footprint matches the printed circuit board layout constraints and thermal management needs.

Flip Flops Part Context

This device is part of the MM74HC374 series, representing onsemi's standard high-speed CMOS logic products. It serves as a digital storage element within larger integrated circuit ecosystems. The SOP-20 packaging provides a compact solution for space-constrained electronic designs while maintaining robust performance characteristics typical of the HC logic family.

Flip Flops Replacement Considerations

Public confirmed substitute part numbers: MM74HC374SJX, MM74HC374WM, MM74HC374WMX, MM74HC374MTCX.
