MMBD7000

Overview

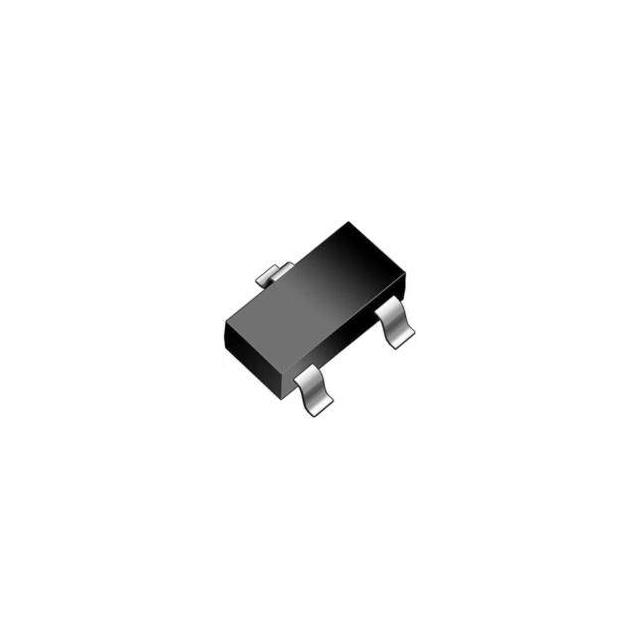

The MMBD7000 is a dual series switching diode manufactured by HY Electronic (Cayman) Limited. It features a peak reverse voltage of 100 V and a maximum continuous forward current of 200 mA. The device exhibits a low reverse recovery time of 4 ns and a forward voltage drop of 1.1 V at 100 mA. Operating within a temperature range of -55 °C to +150 °C, it utilizes a surface-mount SOT-23 package with three pins.

Feature Summary

• Dual series configuration for compact circuit integration
• Ultra-fast switching capability with minimal reverse recovery delay
• Low leakage current characteristics for signal integrity
• Surface-mount design optimized for automated assembly

Applications

• High-speed signal switching circuits
• DC-DC converter output rectification
• Protection against reverse polarity in electronic systems

Procurement Notes

Verify the manufacturer designation as HY Electronic (Cayman) Limited against official datasheets. Confirm the specific suffix codes match the required packaging and compliance standards. Ensure the component meets RoHS directives if applicable to your region. Cross-reference pinouts with standard SOT-23 layouts to prevent installation errors during PCB assembly.

Selection Notes

Select this component for applications requiring fast switching speeds and low forward voltage drops. The dual series arrangement reduces board space compared to discrete single diodes. Verify thermal management requirements given the power dissipation limits. Ensure the operating voltage remains below the 100 V peak reverse rating for reliable long-term performance.

Part Context

This component belongs to the general-purpose small-signal switching diode category. It serves as a semiconductor solution for high-frequency signal processing and protection tasks. The dual-series architecture allows for efficient use of printed circuit board real estate while maintaining robust electrical isolation between circuit nodes.

Replacement Considerations

Equivalent parts include MMBD7000LT1G from onsemi and MMBD7000W from Panjit. Verify that substitute components maintain identical pin configurations and electrical ratings before implementation.
