Product Detailed Parameters
- Description：RF FILTER BAND PASS 28GHZ 3SMD
- Series：MMC
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：28GHz Center
- Bandwidth：4GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Surface Mount
- Package / Case：3-SMD, No Lead
- Size / Dimension：0.138" L x 0.138" W (3.50mm x 3.50mm)
- Height (Max)：0.035" (0.90mm)
Download product information
Overview

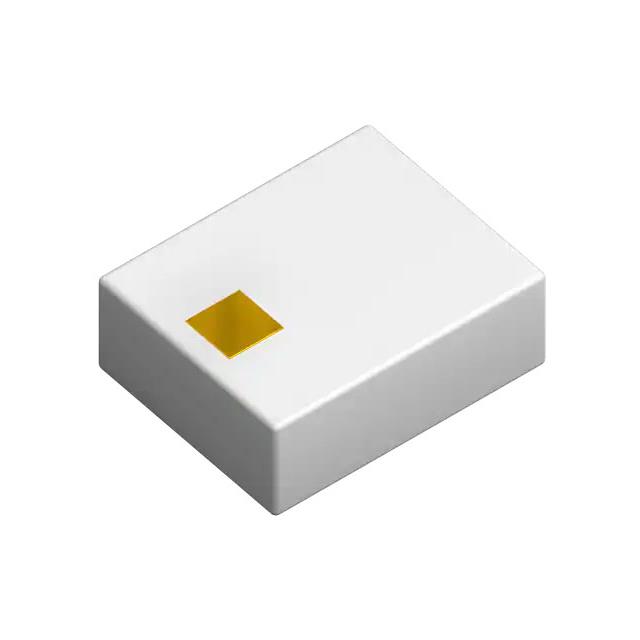

The MMCB3528G0T-0041A1 is a multilayer band-pass filter manufactured by TDK Corporation, designed for millimeter-wave applications in 5G networks. It operates within the frequency range of 26.5 GHz to 30 GHz, with a center frequency of 28 GHz and a bandwidth of 4 GHz. The component utilizes low-temperature co-fired ceramic (LTCC) technology and features a 50 Ohm impedance. It is housed in a compact 3-SMD, no lead package suitable for surface-mount assembly.
Feature Summary
- Utilizes low-temperature co-fired ceramic (LTCC) technology for millimeter-wave signal conditioning
- Designed specifically for 5G network bands in the 26.5 - 30 GHz range
- Compact surface-mount package suitable for high-density PCB layouts
Applications
- 5G network infrastructure components
- Millimeter-wave signal filtering
- RF front-end module integration
Procurement Notes
Verify the specific ordering suffix and packaging configuration against official TDK documentation prior to procurement. Ensure that the received components match the exact part number designation to guarantee compatibility with LTCC-based design requirements. Confirm RoHS compliance status through the manufacturer's latest certification records.
Selection Notes
Select this component when designing circuits requiring precise band-pass filtering in the 26.5 to 30 GHz spectrum. The LTCC construction offers stability for millimeter-wave frequencies. Ensure the PCB layout supports the 3-SMD footprint and maintains 50 Ohm impedance matching for optimal signal integrity in 5G applications.
Part Context
This part belongs to TDK's MMC series of multilayer band-pass filters. These components are engineered for high-frequency performance using advanced ceramic processing. The series targets emerging wireless standards requiring reliable signal conditioning at millimeter-wave frequencies.
Replacement Considerations
Consult official TDK substitution guides for compatible alternatives. Verify electrical parameters such as center frequency and bandwidth match the original specifications before considering cross-references.
FAQ
What technology is used in the MMCB3528G0T-0041A1?
It uses low-temperature co-fired ceramic (LTCC) technology.
What is the operating frequency range?
The filter operates between 26.5 GHz and 30 GHz.
