MMO230-14IO7

Overview

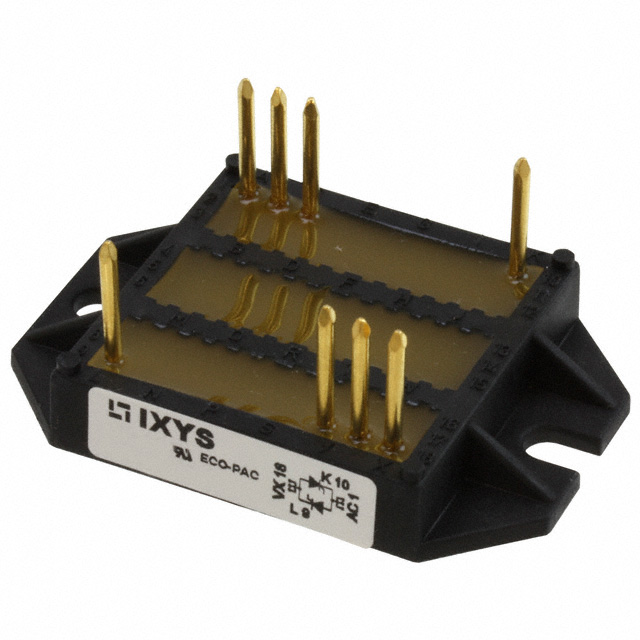

The IXYS MMO230-14IO7 is a thyristor module rated for 230 A output current and 1400 V peak reverse voltage. It utilizes the ECO-PAC-2 package with screw mount installation style. The component operates within a temperature range of -40 °C to +150 °C and features a forward voltage of 1.5 V.

Feature Summary

• High current handling capability suitable for demanding power applications
• Robust thermal performance across extended operating temperatures
• Standardized mounting interface for reliable mechanical integration

Applications

• Industrial motor drives
• Power supply systems
• Welding equipment

Procurement Notes

Verify the specific voltage rating against project requirements, as datasheets may list variants with different blocking voltages. Confirm package compatibility and thermal management needs before procurement. Ensure compliance with RoHS standards if required by the application environment.

Selection Notes

Select this module when high current capacity and robust voltage blocking are required in a compact form factor. Consider the thermal resistance and mounting constraints associated with the ECO-PAC-2 package. Evaluate gate trigger characteristics to ensure compatibility with control circuitry.

Part Context

This component belongs to the MMO series of thyristor modules from IXYS. These modules are designed for high-power industrial applications requiring reliable switching and conduction capabilities. The series offers various voltage ratings to suit different system architectures.

Replacement Considerations

Check for direct replacements within the same series or equivalent modules from other manufacturers with matching current and voltage ratings. Verify pinout compatibility and thermal specifications to ensure seamless integration without redesign.
