MMPF0100F0EPR2

Overview

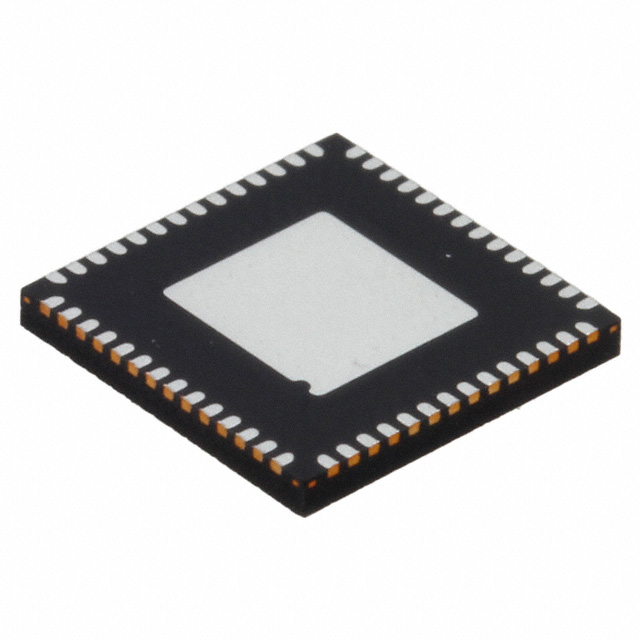

The MMPF0100F0EPR2 is a specialized Power Management Integrated Circuit (PMIC) designed for i.MX6 processors. It features a highly programmable architecture with up to six buck converters, six linear regulators, and one boost regulator. The device operates within an input voltage range of 2.8V to 4.5V and supports output voltages from 300mV to 5.15V. It includes on-chip one-time programmable (OTP) memory for configuration, a coin-cell charger, and RTC supply. The component is housed in a 56-QFN-EP package and is qualified under AEC-Q100 standards for automotive applications.

Feature Summary

• Highly configurable power architecture with integrated buck, LDO, and boost regulators
• On-chip OTP memory for persistent device configuration without external components
• Integrated coin-cell charger and real-time clock (RTC) supply management
• AEC-Q100 qualification for reliable operation in automotive environments

Applications

• Automotive infotainment systems
• GPS navigation units
• i.MX6-based embedded platforms
• Industrial control systems

Procurement Notes

Verify the specific suffix 'F0' against official NXP documentation to confirm pre-programmed OTP values and pinout compatibility. Ensure the reel packaging matches design requirements. Confirm AEC-Q100 automotive grade status if required for the target application environment.

Selection Notes

Select this PMIC when designing systems around i.MX6 processors requiring a compact, multi-rail power solution. The integrated OTP memory reduces external component count. Verify that the 56-QFN-EP package fits the PCB layout constraints and thermal requirements of the final assembly.

Part Context

This component belongs to the MMPF0100 family of SMARTMOS PMICs developed by NXP Semiconductors. These devices are specifically engineered to support heterogeneous processing architectures found in i.MX6 series applications processors, providing efficient power sequencing and regulation for CPU cores, memory, and peripherals.

Replacement Considerations

Check NXP datasheets for direct substitutes within the MMPF0100 series, such as MMPF0100NPAZES or MMPF0100F0AZESR2, ensuring identical OTP configurations and package dimensions.
