MMT-106-01-L-DH-TR

Headers, Male Pins Overview

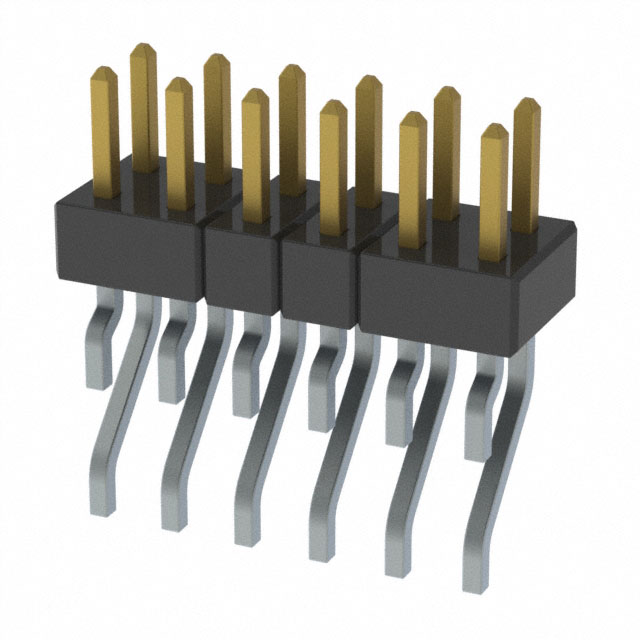

The MMT-106-01-L-DH-TR is a 2.00 mm pitch horizontal surface mount terminal strip manufactured by Samtec. It features a dual-row configuration with 12 positions, designed for right-angle installation on printed circuit boards. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The insulator is constructed from black liquid crystal polymer (LCP), providing high thermal stability and UL 94 V-0 flammability rating. This component supports a mating post length of 3.2 mm and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Horizontal surface mount design facilitates compact board-to-board or cable connections
• Gold-plated phosphor bronze contacts ensure durable electrical performance
• Liquid crystal polymer insulator offers high heat resistance and low moisture absorption

Headers, Male Pins Applications

• High-density electronic assemblies requiring surface mount interconnects
• Board-to-board connections in compact consumer electronics
• Industrial control systems needing reliable right-angle header solutions

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to confirm contact plating, lead style, and packaging format. Ensure the selected variant matches the required operating temperature range and mechanical retention needs. Cross-reference the part number with authorized distributors to confirm availability and authenticity before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount header is required for dense PCB layouts. Consider the 2.00 mm pitch and dual-row arrangement for space-constrained applications. Verify that the mating connector aligns with the specified 3.2 mm post length and pin configuration to ensure proper mechanical engagement and electrical continuity.

Headers, Male Pins Part Context

This part belongs to the MMT series of 2.00 mm pitch terminal strips, which are engineered for high-reliability interconnects in demanding environments. The series offers various mounting styles and contact configurations to support diverse assembly requirements while maintaining consistent electrical characteristics and mechanical robustness across different product variants.

Headers, Male Pins Replacement Considerations

Consult the official Samtec replacement guide for verified substitute part numbers. Generic equivalents may not match the precise dimensional tolerances, material specifications, or contact plating standards required for this application.

Headers, Male Pins FAQ

What is the mating post length for this connector?

The specified mating post length is 3.2 mm.

Is this connector RoHS compliant?

Yes, the component complies with RoHS regulations.
