MMT-107-01-T-MT-K-TR

$1.85

Description：CONN HEADER SMD R/A 14POS 2MM
Series：MMT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)

SKU:51340112da69 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MMT-107-01-T-MT-K-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MMT-107-01-T-MT-K-TR

Description：CONN HEADER SMD R/A 14POS 2MM
Series：MMT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle; Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.126" (3.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for MMT-107-01-T-MT-K-TR

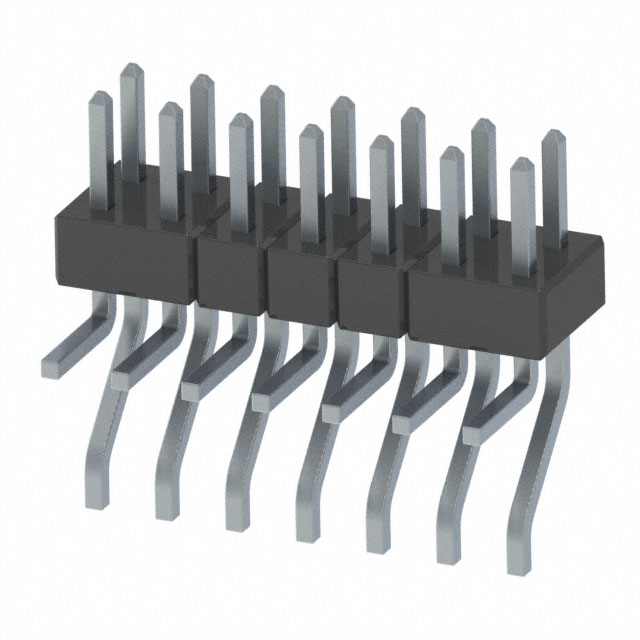

MMT-107-01-T-MT-K-TR

Headers, Male Pins Overview

The MMT-107-01-T-MT-K-TR is a board connector manufactured by Samtec Inc. It features 14 positions arranged in two rows with a 2.00 mm (0.079 inch) pitch. The component utilizes male pin contacts made of phosphor bronze with matte tin plating. Designed for surface mount and right-angle installation, it employs mixed technology termination. The housing is constructed from liquid crystal polymer (LCP), rated UL94 V-0, and is black in color. The mating post length is specified as 3.20 mm.

Headers, Male Pins Feature Summary

Supports mixed technology termination for flexible assembly integration
Features a right-angle surface mount design for compact board layouts
Utilizes phosphor bronze contacts with matte tin plating for conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
Mixed technology assembly environments

Headers, Male Pins Procurement Notes

Verify the specific suffixes against official documentation to ensure correct configuration. Confirm that the tape and reel packaging matches production requirements. Check RoHS3 compliance status for regulatory adherence. Validate the mating interface dimensions prior to final design approval.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle surface mounting with a 2.00 mm pitch. Ensure the target system supports mixed technology termination methods. Verify that the 14-position dual-row layout fits within the available PCB area. Confirm compatibility with the specified mating post length for reliable connection.

Headers, Male Pins Part Context

This part belongs to the MMT series of horizontal surface mount terminal strips. The series offers various configurations for board-to-board and cable applications. It provides a low-profile solution suitable for dense electronic assemblies. The product line emphasizes pick-and-place capabilities for automated manufacturing.
