MMT-108-02-T-MT-P-TR

Headers, Male Pins Overview

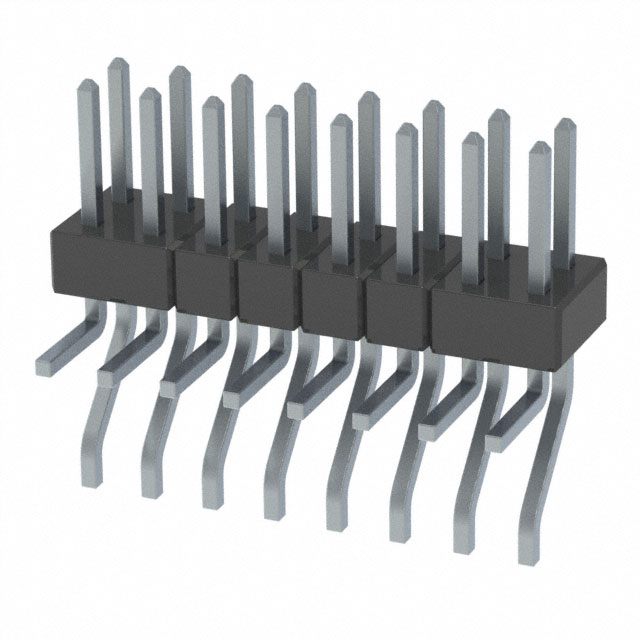

The MMT-108-02-T-MT-P-TR is a 2.00 mm horizontal surface mount terminal strip manufactured by Samtec Inc. It features a right-angle header configuration with 16 positions arranged in two rows. The connector utilizes mixed termination technology, supporting both surface mount and through-hole soldering methods. The housing is constructed from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contact materials consist of phosphor bronze, ensuring reliable electrical performance.

Headers, Male Pins Feature Summary

• Right-angle design orients the connector body perpendicular to the PCB for space-efficient layouts
• Mixed termination technology supports simultaneous surface mount and through-hole processing
• Horizontal orientation facilitates single and double row perpendicular mating configurations

Headers, Male Pins Applications

• Board-to-board interconnections requiring compact vertical stacking
• High-density electronic assemblies utilizing mixed soldering technologies
• Automotive A-Series product integration environments

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact pin count, contact plating specifications, and packaging quantities. Ensure the selected variant matches the required right-angle orientation and mixed termination capabilities for your assembly process. Cross-reference the full part number with current manufacturer catalogs to validate availability and compliance status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when board height constraints require a perpendicular connector orientation while maintaining a low profile footprint. The mixed termination feature allows flexibility during manufacturing, accommodating both SMD reflow and wave soldering processes. Verify that the 2.00 mm pitch aligns with the mating connector requirements and that the 16-position capacity meets the signal or power distribution needs of the target application circuit.

Headers, Male Pins Part Context

This part belongs to the MMT series of 2.00 mm horizontal surface mount terminal strips. The series offers various configurations including shrouded and unshrouded options with different row counts and termination styles. The MMT family is designed for high-reliability applications, providing robust mechanical stability and consistent electrical performance across diverse industrial and consumer electronics environments.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for direct equivalents within the MMT series. Alternative parts must match the 2.00 mm pitch, 16-position count, right-angle orientation, and mixed termination characteristics. Generic rectangular headers may not provide the same mechanical reliability or mounting flexibility.
