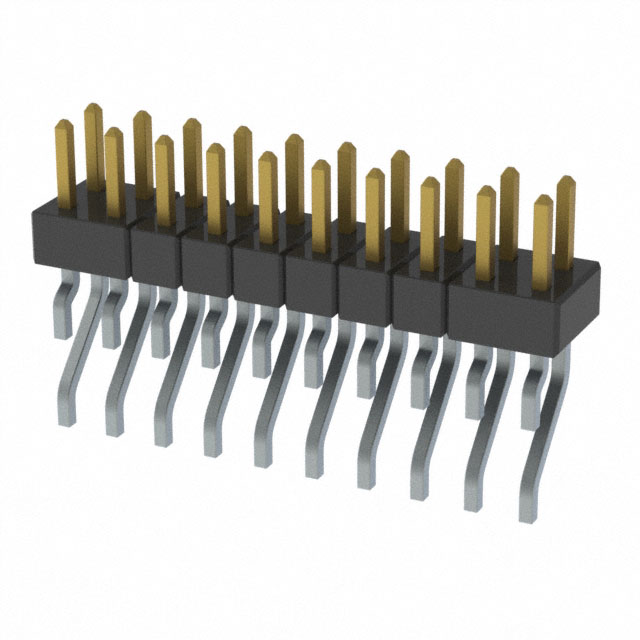

MMT-110-01-L-DH-K

Headers, Male Pins Overview

The MMT-110-01-L-DH-K is a Samtec Inc. rectangular connector header from the MMT series, designed for surface mount right-angle termination. It features 20 positions arranged in a dual row with a 2.00mm (0.079") pitch. The contacts are gold-plated phosphor bronze pins with a mating contact length of 3.20mm and a column plating of tin. The housing is black liquid crystal polymer (LCP) rated UL94 V-0, providing an insulation height of 4.00mm. It supports a rated current of 3A and operates within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board-to-board or cable connections
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Push-pull fastening mechanism secures mating engagement
• Low-profile LCP insulation housing meets UL94 V-0 flammability standards

Headers, Male Pins Applications

• Board-to-board interconnects in high-density electronic assemblies
• Cable-to-board connections requiring right-angle routing
• Industrial control systems and instrumentation modules
• Automotive electronics and infotainment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating thickness, and packaging type. Ensure the selected variant matches the required PCB footprint and mating interface specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into the production line.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount header is required for dual-row applications. The 2.00mm pitch accommodates standard density layouts while the push-pull feature simplifies assembly. Consider the 3A current rating and 105°C operating limit for thermal management planning in dense circuit designs.

Headers, Male Pins Part Context

This part belongs to the Samtec MMT series, which specializes in 2.00mm pitch horizontal surface mount terminal strips. The series offers various configurations including single and dual rows with mixed technology options. The MMT-110-01-L-DH-K represents a specific dual-row configuration optimized for robust mechanical retention and electrical performance in space-constrained environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec MMT series headers with identical 20-position dual-row right-angle SMD footprints. Verify that alternative parts maintain the same 2.00mm pitch, 4.00mm insulation height, and push-pull fastening mechanism to ensure mechanical compatibility.
