MMT-110-01-S-MT

Headers, Male Pins Overview

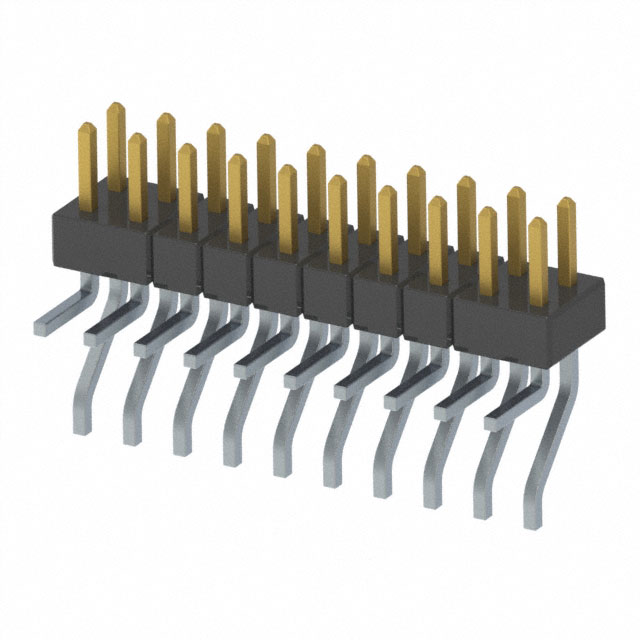

The MMT-110-01-S-MT is a header connector from the Samtec MMT series, featuring a 2.00 mm (0.079 inch) pitch. It provides 20 positions arranged in two rows with square pin contacts. Designed for surface mount and mixed technology applications, it utilizes a right-angle installation style. The connector employs phosphor bronze contacts with gold plating on the mating interface and tin plating on the tail. The insulator is constructed from liquid crystal polymer (LCP), offering a UL94 V-0 flammability rating and black coloration.

Headers, Male Pins Feature Summary

• Supports mixed technology assembly via surface mount and through-hole termination options
• Features right-angle orientation for compact board-to-board or cable interconnections
• Utilizes gold-plated square pins to ensure reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnect systems requiring mixed mounting technologies
• Cable-to-board connections utilizing right-angle header configurations
• High-density electronic assemblies needing 2.00 mm pitch headers

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Samtec documentation to confirm exact packaging and termination details. Ensure compatibility with mating socket strips regarding height and contact length. Confirm RoHS3 compliance status for current production runs. Cross-reference CAD models for accurate PCB footprint verification prior to procurement.

Headers, Male Pins Selection Notes

Select this component when mixed technology mounting is required for 2.00 mm pitch applications. Consider the right-angle form factor for space-constrained vertical interconnections. Verify that the mating partner supports the specified 30.0 µin gold plating thickness. Ensure the operating temperature range of -55°C to 125°C meets system environmental requirements.

Headers, Male Pins Part Context

This part belongs to the MMT series of flexible stacking solutions by Samtec Inc. The series is designed for high-density interconnects with a 2.00 mm pitch. It supports various termination styles including surface mount and mixed technology options. The MMT series is commonly used in automotive and industrial applications requiring robust board-to-board connectivity.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult Samtec technical support for direct equivalents or cross-references based on specific mechanical and electrical constraints.
