MMZ0603AFY560VT000

Overview

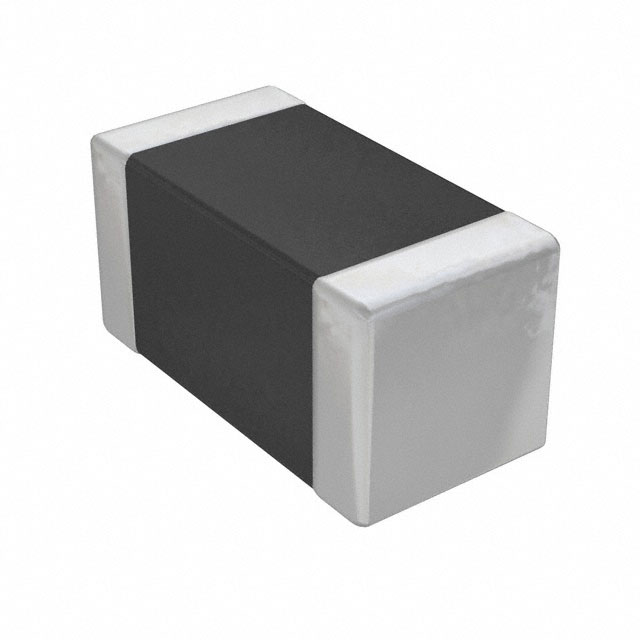

The MMZ0603AFY560VT000 is a single-line ferrite bead from the TDK MMZ-V series, designed for high-speed signal line noise suppression. It features a compact 0201 (0603 Metric) surface-mount package with dimensions of 0.60mm x 0.30mm. The component provides an impedance of 56 Ohms at 100 MHz and has a maximum DC resistance of 2.2 Ohms. It supports a rated current of 125mA and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Engineered for high-speed signal line applications requiring effective noise reduction in wireless spectra such as LTE and Wi-Fi.
• Utilizes multi-layer construction to achieve ultra-high GHz performance in a miniature footprint.

Applications

• Noise suppression for high-speed digital signal lines
• Wireless communication modules including LTE and Wi-Fi circuits
• Portable electronic devices requiring compact EMI filtering

Procurement Notes

Verify the specific suffix 'AFY' against official TDK documentation to confirm material composition and tolerance specifications. Ensure that the 125mA current rating aligns with the target circuit's operational requirements. Confirm RoHS3 compliance status if required by regional regulations before finalizing procurement orders.

Selection Notes

Select this component when space constraints necessitate a 0201 package size while maintaining signal integrity. The 56 Ohm impedance value is suitable for attenuating specific frequency ranges around 100 MHz. Consider the 2.2 Ohm DC resistance impact on voltage drop in low-voltage signal paths during system design.

Part Context

This part belongs to the MMZ-V series of chip ferrite beads manufactured by TDK Corporation. The series is characterized by its ability to handle high-frequency noise in small form factors. The MMZ0603AFY560VT000 specifically targets modern consumer electronics where miniaturization and high-performance filtering are critical design parameters.

Replacement Considerations

MMZ0603F560ET000 is documented as a parameter-equivalent substitute. Verify that the substitute's 150mA current rating and 1.9 Ohm DCR meet or exceed the original design requirements without altering board layout constraints.

FAQ

What is the primary application focus of the MMZ0603AFY560VT000?

It is primarily designed for high-speed signal line noise suppression in wireless communication systems like LTE and Wi-Fi.

Does this component support automotive-grade environments?

The provided documentation specifies commercial grade applications; automotive qualification data is not confirmed for this specific part number.
