Product Detailed Parameters
- Description：FERRITE BEAD 600 OHM 0201 1LN
- Series：MMZ
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：1
- Impedance @ Frequency：600 Ohms @ 100 MHz
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：1.45Ohm
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0201 (0603 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.013" (0.33mm)

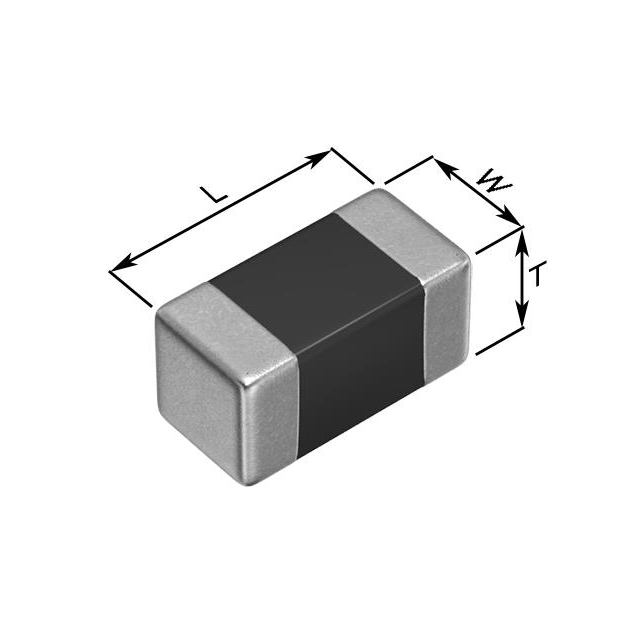

- Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
- Features：-
Download product information
Overview
The MMZ0603S601CTD25 is a surface-mount ferrite bead from the TDK MMZ series, designed for automotive signal line applications. It features an impedance of 600 Ohms at a test frequency of 100 MHz and a maximum DC resistance of 1.45 Ohms. The component supports a maximum DC current of 100 mA with a tolerance of 25%. Housed in a 0201 (0603 metric) package measuring 0.6 mm x 0.3 mm x 0.3 mm, it operates within a temperature range of -55°C to +125°C. The part holds AEC-Q200 qualification.
Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Designed for general signal line filtering
- Compact 0201 surface-mount footprint
Applications
- Automotive electronic circuits
- Signal line noise suppression
- General purpose RF interference filtering
Procurement Notes
Verify the specific suffix TD25 against the manufacturer's official datasheet to confirm packaging configuration and tape-and-reel specifications. Ensure the order matches the exact impedance and current rating requirements for the target circuit design. Cross-reference the AEC-Q200 certification status directly with TDK documentation to validate automotive grade compliance before procurement.
Selection Notes
Select this component when space constraints require a 0201 footprint for high-frequency noise attenuation. The 600 Ohm impedance provides effective damping for specific signal lines while maintaining low DC resistance. Verify that the 100 mA current rating exceeds the maximum operating current of the protected circuit to prevent saturation or excessive heating during normal operation.
Part Context
This ferrite bead belongs to the TDK MMZ auto series, which specializes in compact components for automotive electronics. The MMZ series offers various impedance values in standard metric packages to support diverse EMI suppression needs. The 0201 size allows for high-density PCB layouts common in modern automotive control units and infotainment systems.
Replacement Considerations
Check for other MMZ series parts with similar 600 Ohm impedance and 0201 dimensions. Verify that any substitute meets the same AEC-Q200 qualification and current handling capabilities.
