MMZ0603S601ET

Overview

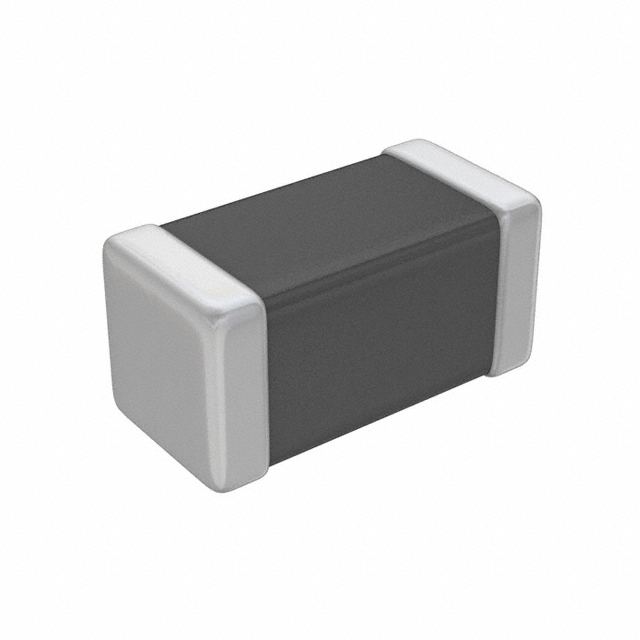

The TDK MMZ0603S601ET is a surface-mount ferrite bead from the MMZ series, designed for signal line noise suppression. It features a 0201 (0603 metric) package with dimensions of 0.6mm x 0.3mm x 0.3mm. The component provides an impedance of 600 Ohms at 100 MHz and supports a maximum DC current rating of 280mA. Its maximum DC resistance is 750mOhms. It operates within a temperature range of -55°C to +125°C and complies with RoHS directives.

Feature Summary

• Provides effective high-frequency noise attenuation for sensitive signal lines
• Compact 0201 footprint enables dense circuit board layouts
• Low DC resistance minimizes power loss in the signal path

Applications

• Signal line noise suppression in consumer electronics
• EMI filtering in portable devices
• High-speed data interface protection

Procurement Notes

Verify the specific suffix ET against official TDK documentation to confirm exact electrical tolerances and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 0201 components. Cross-reference datasheets for moisture sensitivity levels and handling requirements prior to assembly.

Selection Notes

Select this component when space constraints require a 0201 package size. Choose based on the required 600 Ohm impedance at 100 MHz for the target frequency band. Verify that the 280mA current rating meets the operational load without excessive self-heating or resistance drift.

Part Context

This part belongs to the TDK MMZ series of chip ferrite beads. The series offers various impedance values and current ratings in standardized metric packages. The MMZ0603S601ET specifically addresses applications needing moderate current handling with significant high-frequency attenuation in a minimal surface area.

Replacement Considerations

Check for direct substitutes within the MMZ series such as MMZ0603S601CT000, ensuring impedance and current ratings match. Verify package dimensions and terminal configurations before substitution.
