MMZ1608S601CTAH0

Overview

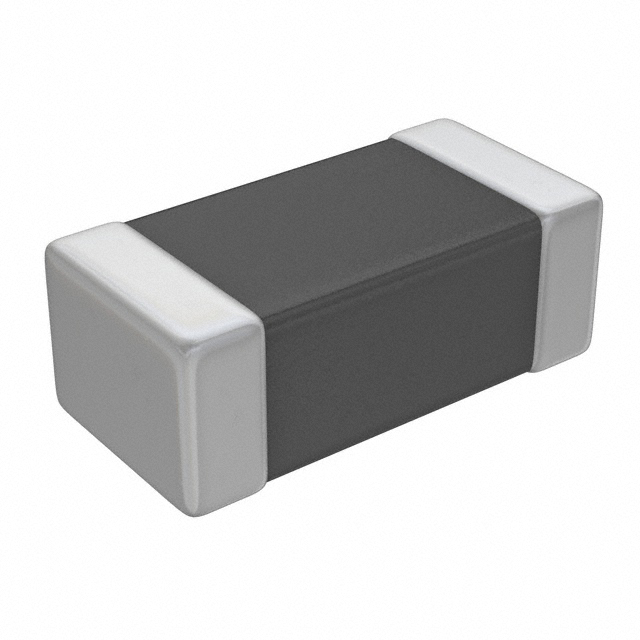

The MMZ1608S601CTAH0 is a surface-mount ferrite bead from the TDK MMZ series, designed for signal line applications. It features a 0603 (1608 metric) package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component provides an impedance of 600 Ohms at a test frequency of 100 MHz. It supports a maximum DC current of 500 mA and has a maximum DC resistance of 400 mOhms. The device operates within a temperature range of -55°C to +125°C.

Feature Summary

• Designed specifically for signal line noise suppression in electronic circuits.
• Constructed in a compact 0603 surface-mount package for space-constrained designs.
• Capable of handling up to 500 mA of direct current without saturation.

Applications

• Signal line filtering
• Commercial grade electronics

Procurement Notes

Verify the specific suffix 'S' against the official TDK datasheet to confirm physical dimensions and electrical characteristics, as variations exist within the MMZ family. Confirm RoHS compliance status through the manufacturer's latest documentation. Check for End-of-Life (NRND) notices or Production Change Notices (PCN) that may affect long-term availability or form factor consistency before finalizing procurement plans.

Selection Notes

Select this component when a 600 Ohm impedance at 100 MHz is required for signal integrity management. Ensure the 500 mA current rating aligns with the circuit's operational requirements. Compare the 0603 footprint against available board space. Consider the MPZ series if shielded performance or higher current capacity is necessary for the specific application environment.

Part Context

This part belongs to the TDK MMZ series of ferrite chip beads. The series offers various impedance values and current ratings in standard metric packages. The MMZ1608S601CTAH0 represents a specific configuration optimized for signal lines, distinguishing it from power line variants like the MPZ series which offer shielding capabilities.

Replacement Considerations

MMZ1608S601ATA00 is listed as a recommended alternate part number. Verify dimensional compatibility and electrical equivalence before substitution.

FAQ

What is the test frequency for the specified impedance?

The impedance of 600 Ohms is measured at a test frequency of 100 MHz.

Is this component suitable for power line applications?

No, this component is explicitly designated for signal line applications.
