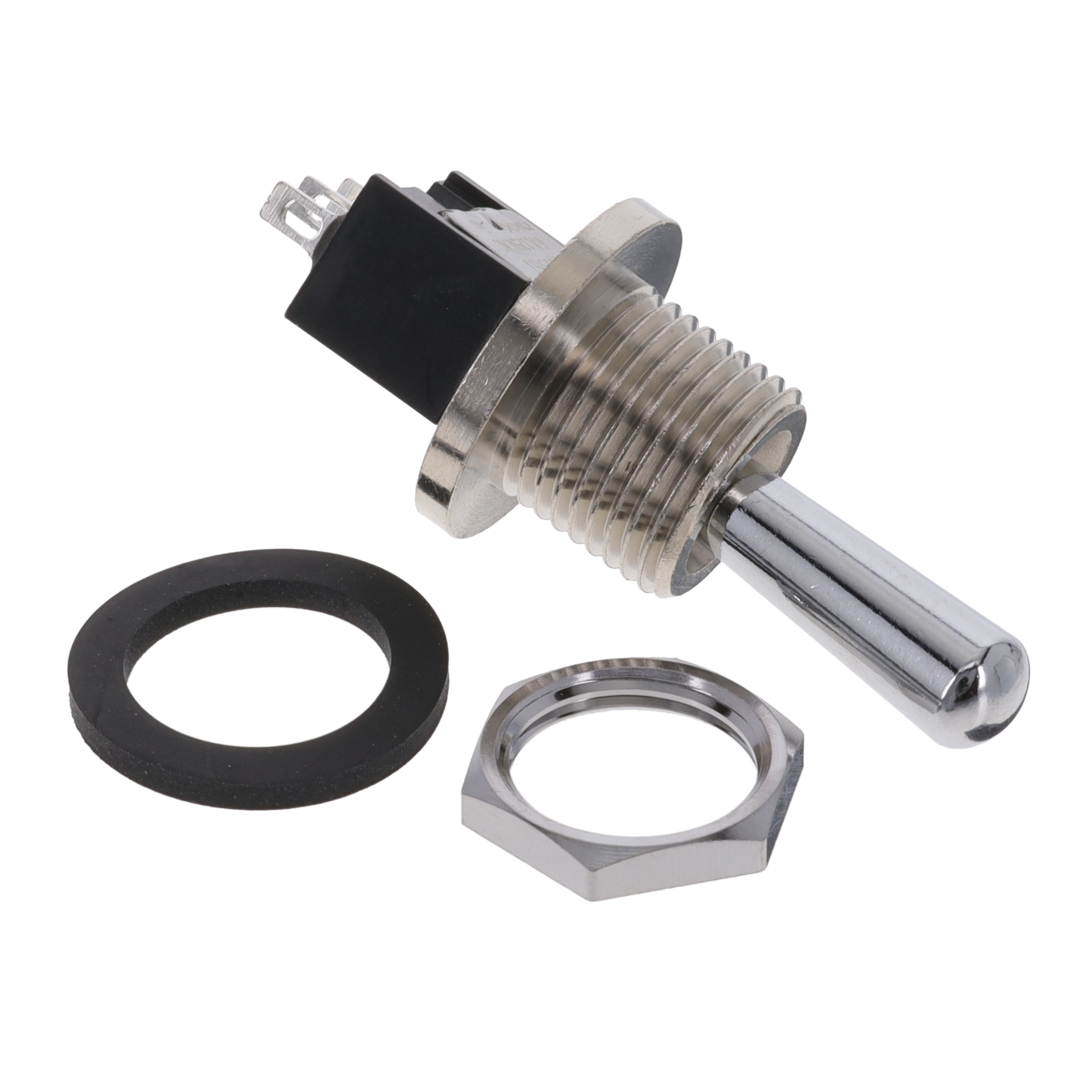

MN15B2B3W01 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for MN15B2B3W01
- Description：SWITCH TOGGLE
- Series：M
- Mfr：NKK Switches
- Package：Bulk
- Mounting Type：Panel Mount
- Circuit：SPDT
- Switch Function：On-Mom
- Current Rating (Amps)：6A (AC), 3A (DC)
- Voltage Rating - AC：125 V
- Voltage Rating - DC：30 V
- Actuator Type：Standard Round
- Actuator Length：17.50mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：Solder Lug
- Panel Cutout Dimensions：Circular - 12.50mm Dia
- Bushing Thread：M12 x 1
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Operating Temperature：-30°C ~ 85°C
Toggle Switches datasheet and documents for MN15B2B3W01
