MOLC-130-M1-L-Q-LC

Headers, Male Pins Overview

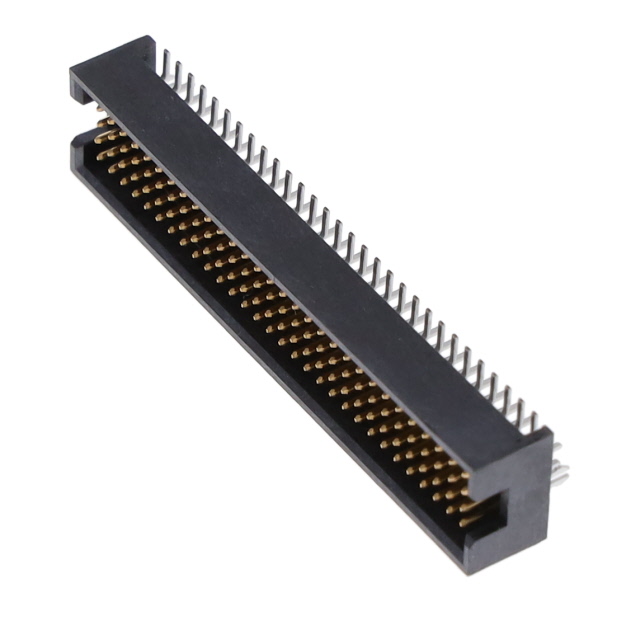

The MOLC-130-M1-L-Q-LC is a board connector manufactured by Samtec Inc. It features 120 contacts arranged in four rows, designed for straight installation with solder terminals. The component utilizes male contact gender and operates with a terminal pitch of 1.27 mm. Contact finishes include gold over nickel for mating surfaces and matte tin for termination. The unit is RoHS compliant and classified as a general-purpose board connector.

Headers, Male Pins Feature Summary

• Four-row configuration providing high-density connectivity
• Locking clip option ensures secure mechanical retention
• Straight through-hole mounting for reliable board attachment

Headers, Male Pins Applications

• High-density interconnects requiring robust locking mechanisms
• General-purpose board-to-board connections
• Manual assembly processes where auto-placement is not feasible

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact pin count, lead style, and locking clip compatibility. Ensure manual placement protocols are followed during assembly due to high insertion force requirements associated with the locking clip feature. Confirm RoHS compliance status for your specific manufacturing region regulations.

Headers, Male Pins Selection Notes

Select this component when high-density four-row connectivity is required alongside mechanical locking stability. Consider manual assembly workflows as automatic placement is incompatible with the locking clip variant. Evaluate the 1.27 mm pitch against available board space and mating connector constraints to ensure proper fitment within the design envelope.

Headers, Male Pins Part Context

This part belongs to the MOLC series of board connectors from Samtec. The series offers various row counts and pitch options. The specific model indicates a four-row arrangement with a locking clip feature, distinguishing it from standard non-locking variants within the same family line.

Headers, Male Pins Replacement Considerations

Consult official Samtec cross-reference data for direct substitutes. Verify that any replacement maintains the four-row layout, 1.27 mm pitch, and locking clip functionality to preserve mechanical and electrical interface integrity.
