MP01226

Overview

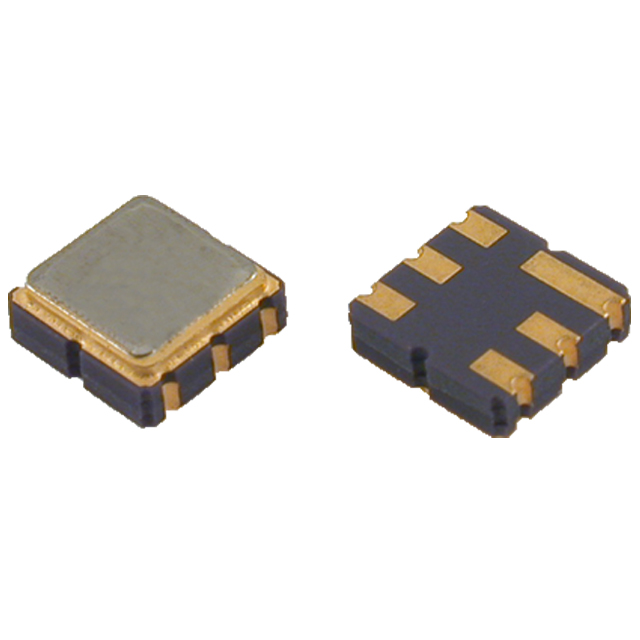

The MP01226 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1030.0 MHz. The component is designed for surface mount technology and requires specific thermal handling during assembly, including preheating at 150 to 180°C for 60 to 90 seconds with an ascending time of at least 30 seconds.

Feature Summary

• Surface Acoustic Wave (SAW) filtering technology
• Center frequency operation at 1030.0 MHz
• Surface mount construction

Applications

• RF signal processing in communication systems
• Frequency selection in wireless transceivers

Procurement Notes

Verify the exact datasheet version and revision history before procurement, as manufacturing specifications may evolve. Confirm that the supplier provides documentation matching the specific part number MP01226. Ensure compliance with RoHS directives if required by your application standards. Check for any specific handling instructions beyond the standard preheating requirements listed in the official documentation.

Selection Notes

Select this component when a SAW filter is required for the 1030.0 MHz band. Consider the physical size and mounting style compatibility with your PCB layout. Evaluate the thermal profile capabilities of your reflow process against the specified preheating parameters. Compare insertion loss and bandwidth characteristics against system requirements to ensure adequate signal integrity.

Part Context

This component belongs to the Golledge Electronics product portfolio, which includes quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, RTC modules, and crystal filters. The MP01226 represents their SAW filter offerings, distinct from their resonant components. Golledge Electronics serves the global electronics market with these timing and filtering solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Golledge Electronics directly for potential alternatives or cross-reference options based on specific electrical performance requirements.

FAQ

What are the recommended preheating conditions for the MP01226?

Preheating should be fixed at 150 to 180°C for 60 to 90 seconds, with an ascending time to 150°C of at least 30 seconds.

What is the operating frequency of the MP01226?

The MP01226 operates at a center frequency of 1030.0 MHz.
