MP01594

Overview

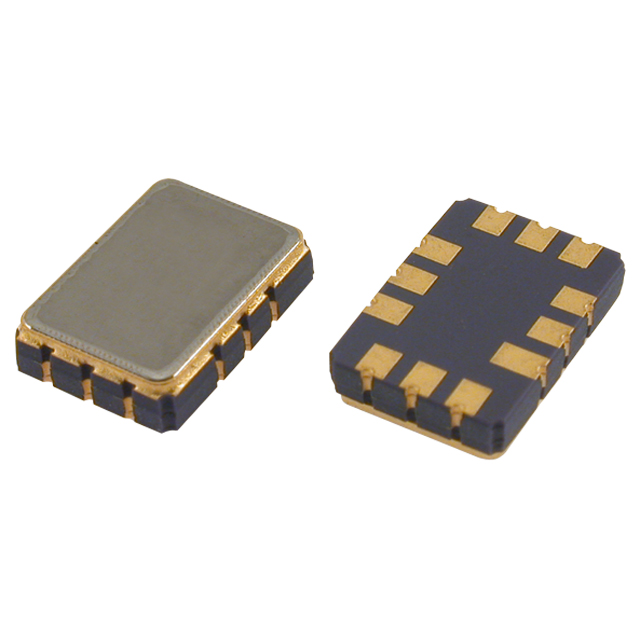

The MP01594 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd, designed for wireless RF applications. It operates at a center frequency of 159.0125 MHz with a bandwidth of 6.025 MHz and an insertion loss of 2.8 dB. The component is housed in a 10-SMD, No Lead package and supports an operating temperature range from -40 °C to 85 °C.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for wireless radio frequency applications
• Features a compact surface-mount package without leads

Applications

• Wireless RF systems
• Radio frequency signal processing
• Communication equipment filtering

Procurement Notes

Verify the specific part number MP01594 against official Golledge Electronics documentation to confirm current production status and technical specifications. Ensure compatibility with the intended 159.0125 MHz application requirements before procurement.

Selection Notes

Select this component based on its specific 159.0125 MHz center frequency and 6.025 MHz bandwidth requirements. Consider the 10-SMD package type and the -40 °C to 85 °C operating temperature range for environmental suitability.

Part Context

This SAW filter belongs to Golledge Electronics' lineup of passive components for RF applications. It serves as a specialized filter solution within their portfolio, distinct from their quartz crystals and oscillators, targeting specific frequency bands in wireless communications.

FAQ

What is the center frequency of the MP01594?

The center frequency is 159.0125 MHz.

What is the insertion loss specification?

The insertion loss is specified as 2.8 dB.
