MP01698

Overview

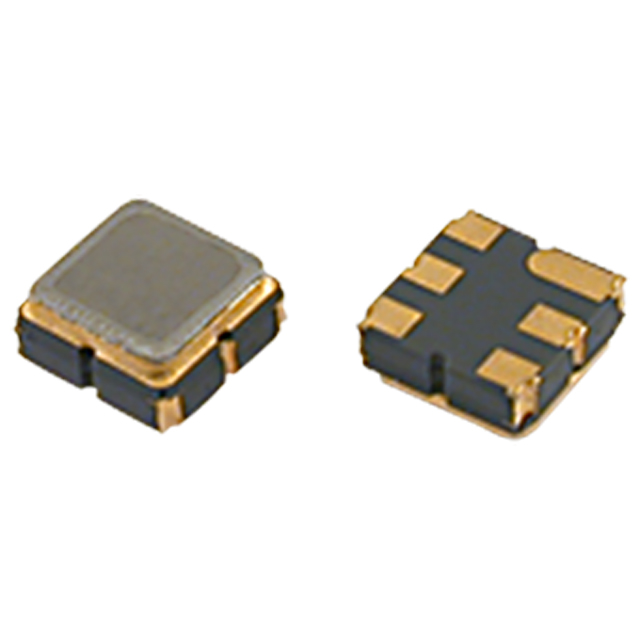

MP01698 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1237.50 MHz with a bandwidth of 4 MHz and an insertion loss of 3 dB. The component is housed in a 6-SMD, No Lead surface mount package. It is designed for wireless RF applications requiring precise signal filtering.

Feature Summary

• Utilizes Surface Acoustic Wave technology for high-frequency signal processing
• Optimized for wireless RF applications with specific bandwidth characteristics
• Compact surface mount package design for automated assembly

Applications

• Wireless communication systems
• RF signal filtering
• Frequency selection circuits

Procurement Notes

Verify the exact part number MP01698 against official Golledge Electronics documentation to confirm the 1237.50 MHz center frequency and 6-SMD package type. Ensure compatibility with your RF circuit requirements before procurement.

Selection Notes

Select this component for applications requiring a 1237.50 MHz SAW filter. Consider the 4 MHz bandwidth and 3 dB insertion loss specifications. Verify that the 6-SMD package fits your PCB layout constraints.

Part Context

Golledge Electronics Ltd specializes in passive components including SAW filters. The MP series includes various frequencies. This specific model targets the 1.2 GHz range for wireless connectivity solutions.

Replacement Considerations

No public substitute part numbers are documented for MP01698. Consult manufacturer resources for potential alternatives if availability is an issue.
