MP02566

Overview

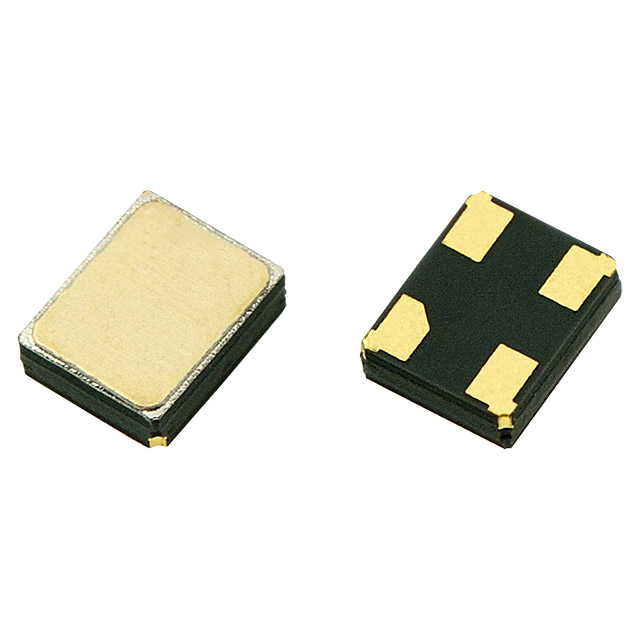

The MP02566 is a surface acoustic wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 64.80 MHz and is designed for RF signal processing applications. The component is classified as an active SAW filter product within the manufacturer's portfolio, intended for use in communication systems requiring precise frequency selection.

Feature Summary

• Surface Acoustic Wave (SAW) technology implementation
• Designed for specific RF frequency filtering
• Manufactured by Golledge Electronics Ltd

Applications

• RF receiver front-end filtering
• Communication system signal processing
• Frequency selection circuits

Procurement Notes

Verify the exact datasheet specifications for insertion loss, bandwidth, and package dimensions before procurement. Confirm that the 64.80 MHz center frequency aligns with your system requirements. Ensure compatibility with your PCB layout and impedance matching networks. Contact Golledge Electronics or authorized distributors for current availability and technical support documentation.

Selection Notes

Select this component when a SAW filter is required at 64.80 MHz. Consider its physical size and mounting requirements against your design constraints. Evaluate its performance characteristics against alternative filters if stricter specifications are needed. Verify that the operating temperature range meets your application environment.

Part Context

Golledge Electronics Ltd specializes in frequency control components, including quartz crystals, oscillators, and RF filters. The MP02566 belongs to their SAW filter series, which provides solutions for radio frequency applications. This product line supports various communication standards requiring stable and selective filtering.

FAQ

What is the center frequency of the MP02566?

The MP02566 operates at a center frequency of 64.80 MHz.

What type of filter technology does the MP02566 use?

It utilizes Surface Acoustic Wave (SAW) technology.
