MP03050

Overview

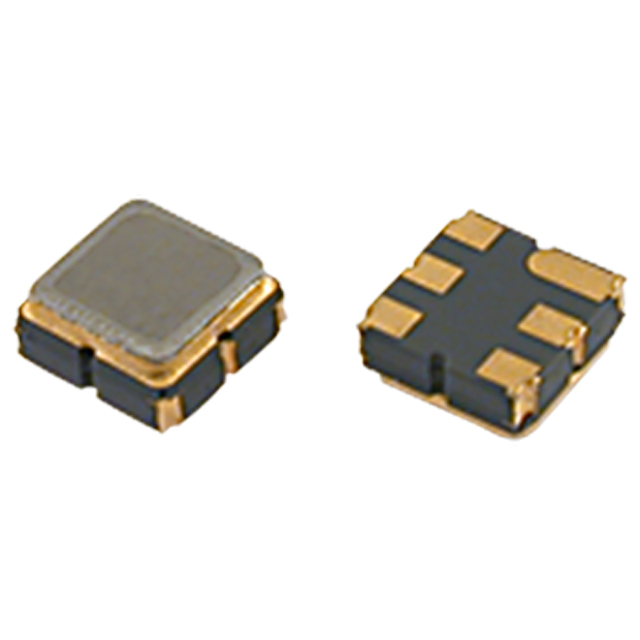

The MP03050 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd, designed for general-purpose RF applications. It operates at a center frequency of 810MHz with a bandwidth of 10MHz. The component exhibits an insertion loss of 4.3dB and is housed in a compact 6-SMD, No Lead package suitable for surface mount assembly.

Feature Summary

• Utilizes Surface Acoustic Wave technology for RF signal filtering
• Optimized for general-purpose radio frequency applications
• Designed for surface mount integration via SMD package

Applications

• General purpose RF signal processing
• Wireless communication systems
• RF front-end filtering modules

Procurement Notes

Verify the manufacturer designation as Golledge Electronics Ltd when sourcing this component. Confirm the specific part number MP03050 to ensure compatibility with the 810MHz SAW filter specifications. Check for RoHS compliance status and packaging details such as tape and reel availability prior to procurement to align with manufacturing requirements.

Selection Notes

Select this component for applications requiring a 810MHz center frequency with a 10MHz bandwidth. Consider the 4.3dB insertion loss and 6-SMD package dimensions during circuit layout. Ensure the design accommodates the surface mount form factor and meets the thermal and electrical requirements for general-purpose RF environments.

Part Context

This component belongs to the SAW filter category produced by Golledge Electronics Ltd. It serves as a passive RF element distinct from quartz crystals or oscillators found in the manufacturer's portfolio. The device provides frequency selection capabilities for radio frequency circuits without active power requirements.
