MP04077

Overview

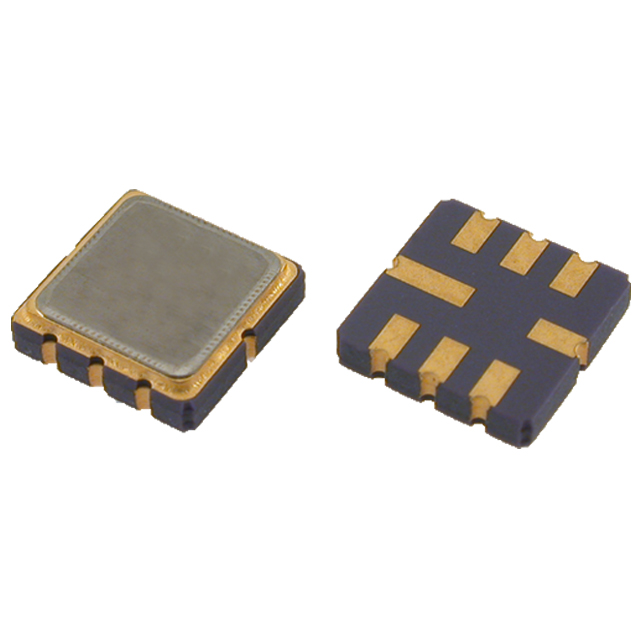

The MP04077 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates with a nominal center frequency of 609.90 MHz. The component is designed for signal filtering applications within radio frequency circuits. It is RoHS compliant and utilizes a compact surface mount package suitable for automated assembly processes in electronic manufacturing.

Feature Summary

• Utilizes Surface Acoustic Wave technology for precise RF filtering
• Designed for high-frequency signal processing at 609.90 MHz
• RoHS compliant construction for environmental safety standards

Applications

• RF front-end modules
• Wireless communication systems
• Signal conditioning circuits

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation characteristics and impedance matching requirements. Ensure the ordering suffix matches the required package style and tape/reel specifications. Confirm compliance with current RoHS directives before finalizing procurement orders for production integration.

Selection Notes

Select this component when a SAW filter centered at approximately 610 MHz is required. Consider the physical footprint and thermal management capabilities of the target PCB layout. Evaluate insertion loss and stopband rejection against system noise floor requirements to ensure adequate signal integrity.

Part Context

Golledge Electronics Ltd specializes in frequency control components, including crystals, oscillators, and filters. The MP04077 belongs to their SAW filter portfolio, which supports various wireless and industrial applications requiring stable frequency selection.
