MP05051

Overview

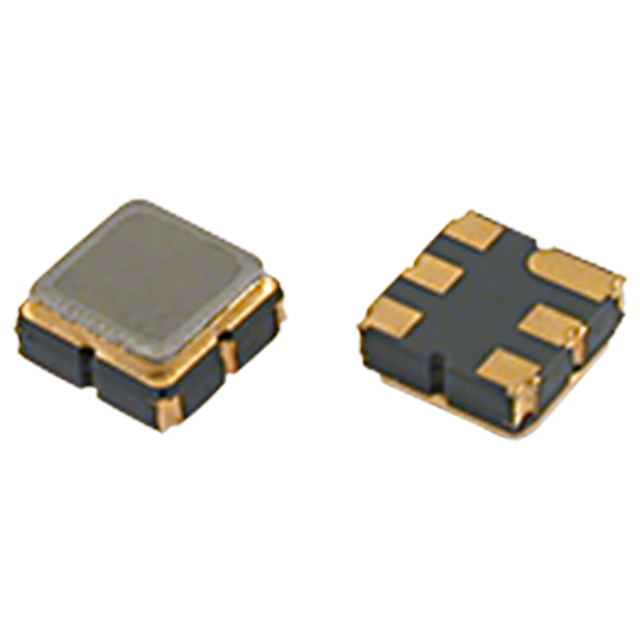

The MP05051 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 869.6 MHz and is designed for surface mount installation. The component utilizes a six-terminal SMD package with a maximum height of 1.15 mm. Key electrical specifications include an insertion loss of 3.7 dB. This device functions as a bandpass filter within the specified radio frequency range.

Feature Summary

• Surface acoustic wave technology for RF filtering
• Six-terminal surface mount package configuration
• Designed for operation at 869.6 MHz

Applications

• RF signal processing in communication systems
• Frequency selection in wireless transceivers
• Signal conditioning in mobile devices

Procurement Notes

Verify the specific part number against official Golledge Electronics documentation to confirm the 869.6 MHz center frequency and 3.7 dB insertion loss parameters. Ensure the six-terminal SMD package dimensions match the design requirements. Confirm RoHS compliance status through the manufacturer's current datasheet before procurement.

Selection Notes

Select this component based on the required 869.6 MHz operating frequency and the need for a low-profile surface mount SAW filter. Evaluate the 3.7 dB insertion loss against system link budget requirements. Consider the physical footprint constraints provided by the six-terminal SMD package when designing the PCB layout.

Part Context

This component belongs to the Golledge Electronics portfolio of passive RF components, specifically focusing on SAW filters. It complements their broader range of quartz crystals, oscillators, and resonators. The MP05051 addresses applications requiring precise frequency filtering in compact electronic assemblies.
