MP05083

Overview

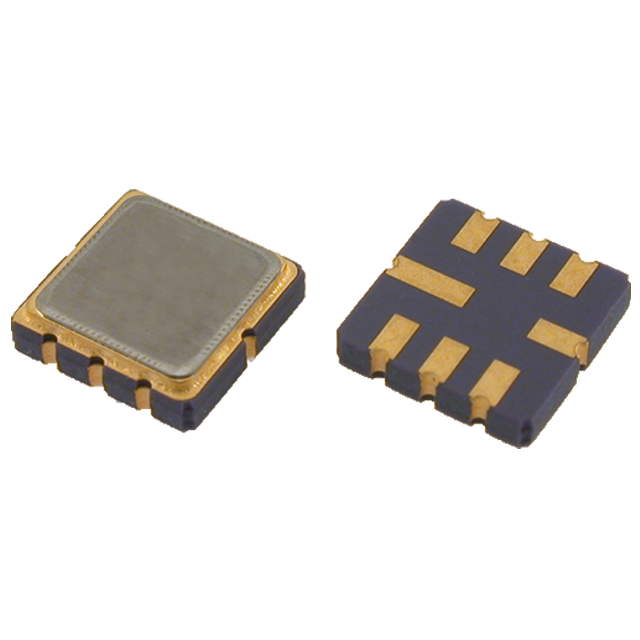

The MP05083 is a dual SAW filter manufactured by Golledge Electronics Ltd. It operates at frequencies of 390.0 MHz and 420.0 MHz, utilizing the TE0115A model design. This component is RoHS compliant and lead-free, ensuring adherence to environmental standards. The device is designed for surface mount applications, providing efficient signal filtering in compact electronic systems.

Feature Summary

• Dual SAW filter architecture supporting two distinct frequency bands
• RoHS compliant and lead-free construction for environmental safety
• Surface mount technology integration for automated assembly

Applications

• Wireless communication devices requiring multi-band filtering
• RF front-end modules in portable electronics
• Signal processing circuits in industrial equipment

Procurement Notes

Verify the specific TE0115A variant matches your circuit requirements. Confirm that the operating frequencies align with your system's specifications. Ensure compatibility with surface mount assembly processes. Check for any additional environmental certifications required by your region.

Selection Notes

Consider the physical dimensions and pad layout when designing the PCB. Evaluate the thermal management needs during operation. Assess the impact of the dual-filter design on overall system size. Verify that the component meets all regulatory standards for your target market.

Part Context

Golledge Electronics Ltd specializes in RF components and filters. The MP05083 represents their expertise in dual-frequency solutions. This product line supports various industries needing reliable signal integrity. The company emphasizes compliance and miniaturization in its designs.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
